Basic Parameters
- Housing Material: flame retardant PBT-Aluminum
- Front Cover: PMMA lens with grid
- Heat Sink: Aluminum body shell + MPCB
- Beam Angle: 38°
- Color Temperature (CCT): 3000K/4200K/6500K±300K
- Color Render Index (CRI/Ra): >80 / >90
- Dimming: non-dimmable
- Input Voltage: AC85V-265V
- Driver Type:
- switching IC driver (independent, no flicker)
- Power Factor (PF): 0.8
- Lifetime Span: 15,000 Hrs
- Warranty: 2 years
Data of the Models
- Model Type: MR16-SMD-7W-PA03/A3
- Lamp Base/Cap: GU5.3
- Rated Power: 7 Watts
- Diameter (mm/inch): 50mm/1.97inch
- Height (mm/inch): 54mm/2.13inch
- LED Chips: 1*COB (5-7W)
- Power Consumption: 6.0W±5%
- Luminous Flux: 480lm±10%
- Lumen Efficiency: 70-80lm/W
- Halogen Equivalent: 50W

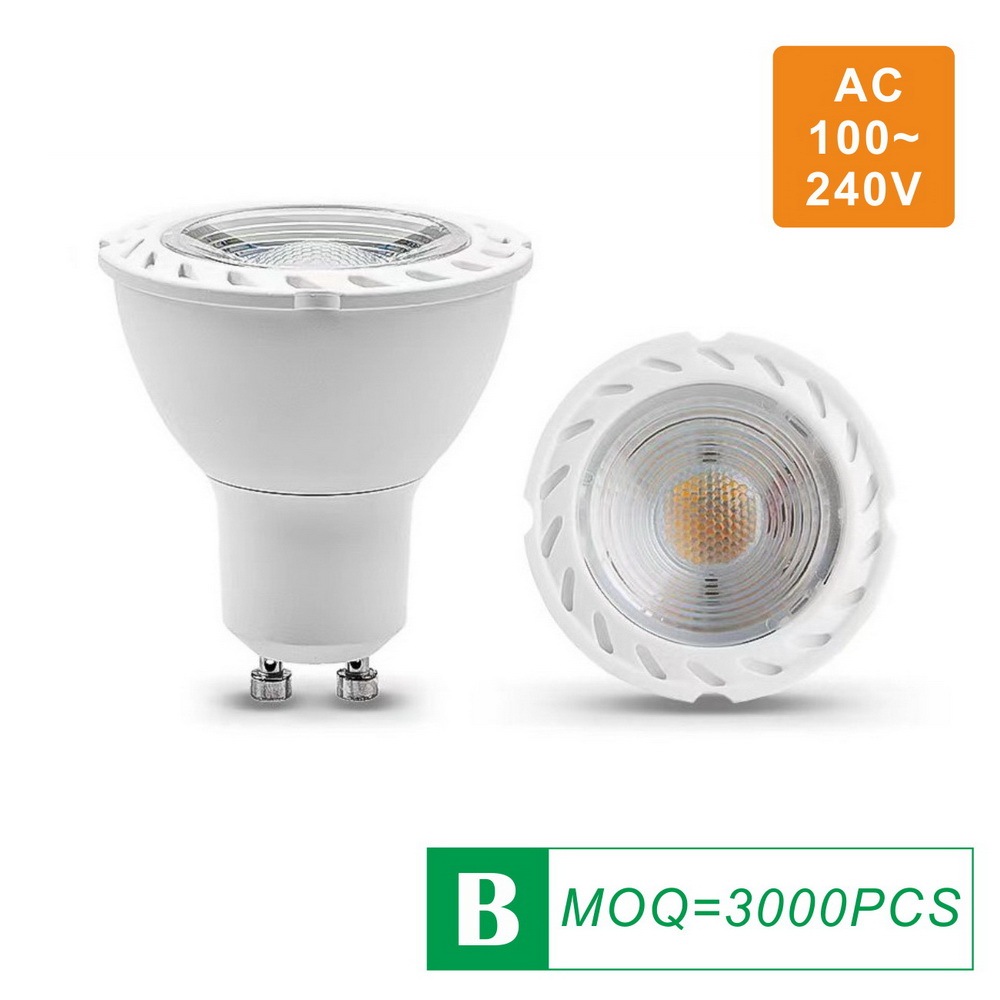

- Model Type: GU10-SMD-7W-PA03/A3
- Lamp Base/Cap: GU10
- Rated Power: 7 Watts
- Diameter (mm/inch): 50mm/1.97inch
- Height (mm/inch): 60mm/2.36inch
- LED Chips: 1*COB (5-7W)
- Power Consumption: 6.0W±5%
- Luminous Flux: 480lm±10%
- Lumen Efficiency: 70-80lm/W
- Halogen Equivalent: 50W
Conformity/Certification
Applications & Typical Light Fixtures
- indoor, domestic, household, interior
- spot lighting, local lighting, atmospheric lighting, residential lighting … commercial lighting, office lighting
- bedroom, living room, dining room, study, kitchen, corridor, passage, aisle, hallway, vestibule, entry …
- office, reception, meeting room, showroom, department store, boutique, shopping mall, supermarket, plaza, outlets,
show window, museum, exhibition hall, hotel, lobby, restaurant, café, canteen, reading room, rest room, kindergarten, hospital, nursery, library …
- ceiling downlight, embedded downlight, recessed downlight, track light, spotlight, mirror front lamp, fresco lamp, pot-light, Hi-pot …
