Basic Parameter
- Housing Material: quartz glass
- Front Cover: quartz glass cover with grid
- Heat Sink: Aluminum MPCB
- Beam Angle: 120°

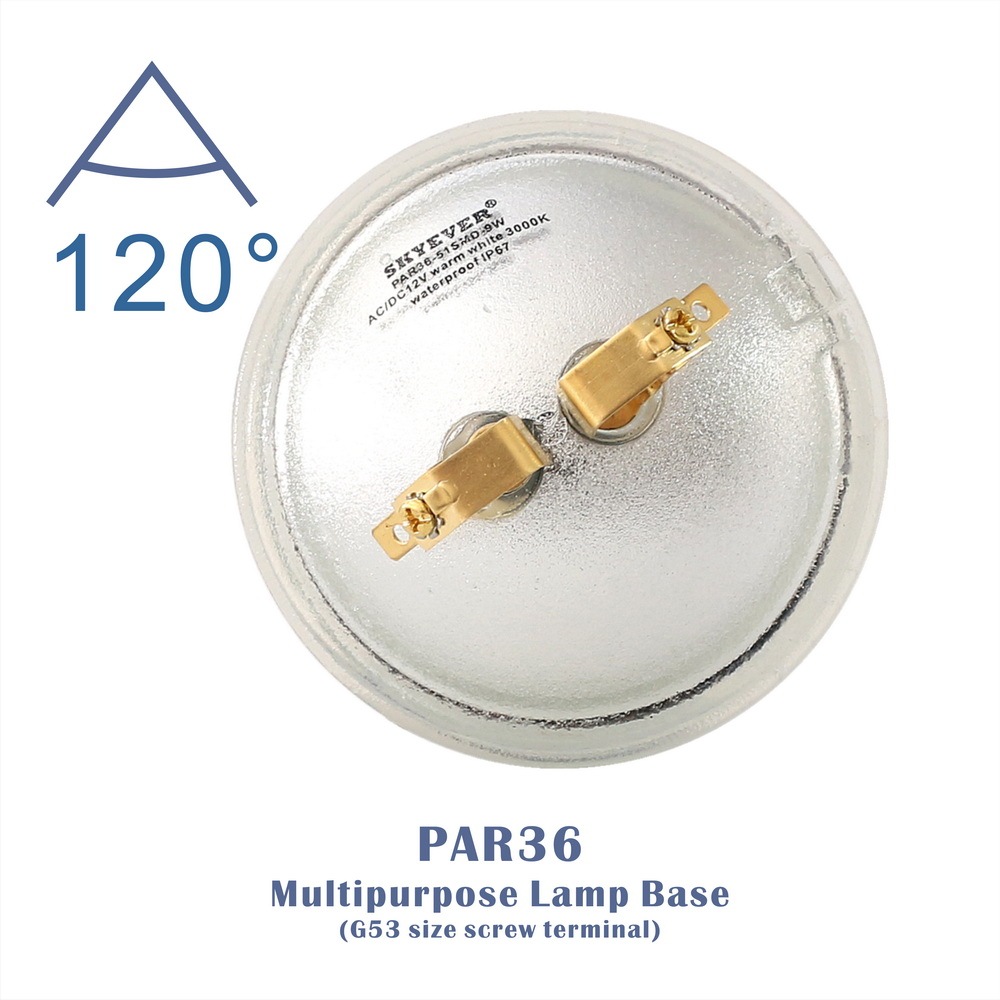

- Lamp Base/Cap: multi-purpose screw terminal

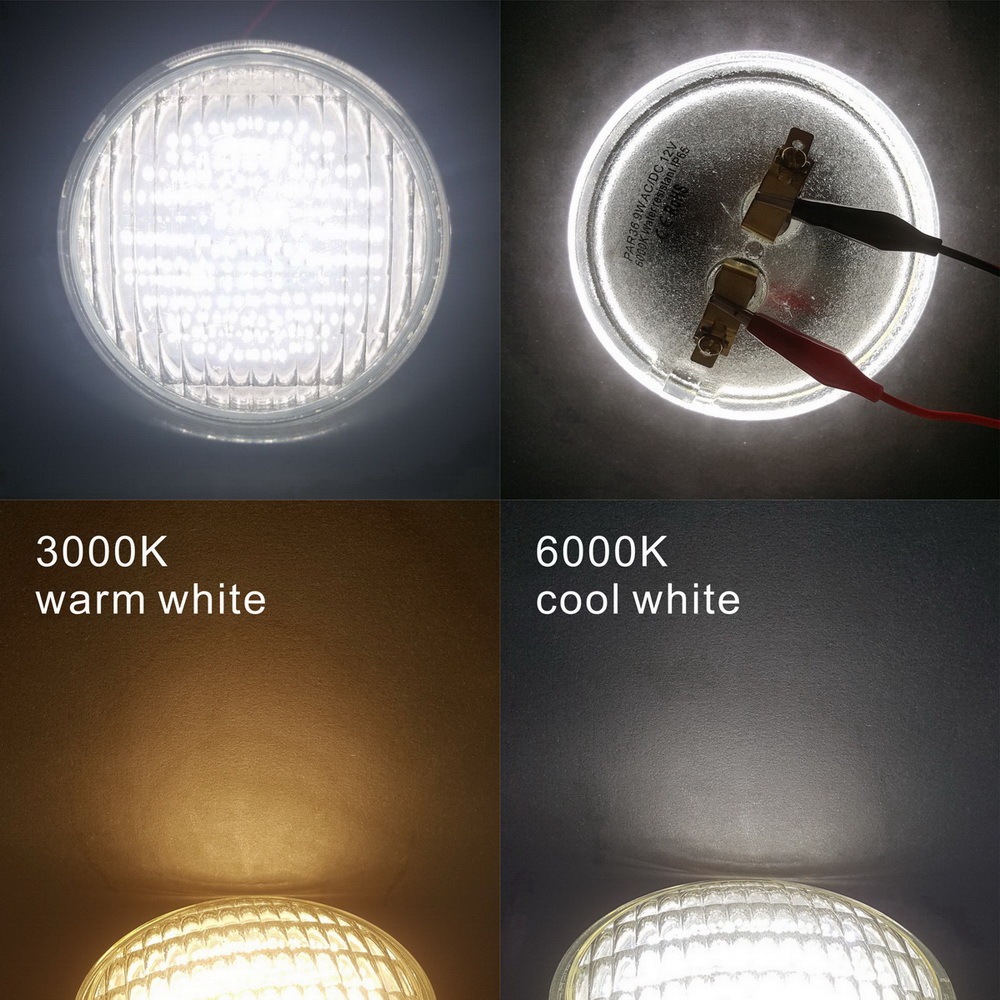

- Color Temperature (CCT): 3000K/4200K/6000K±200K
- Color Render Index (CRI/Ra): >80

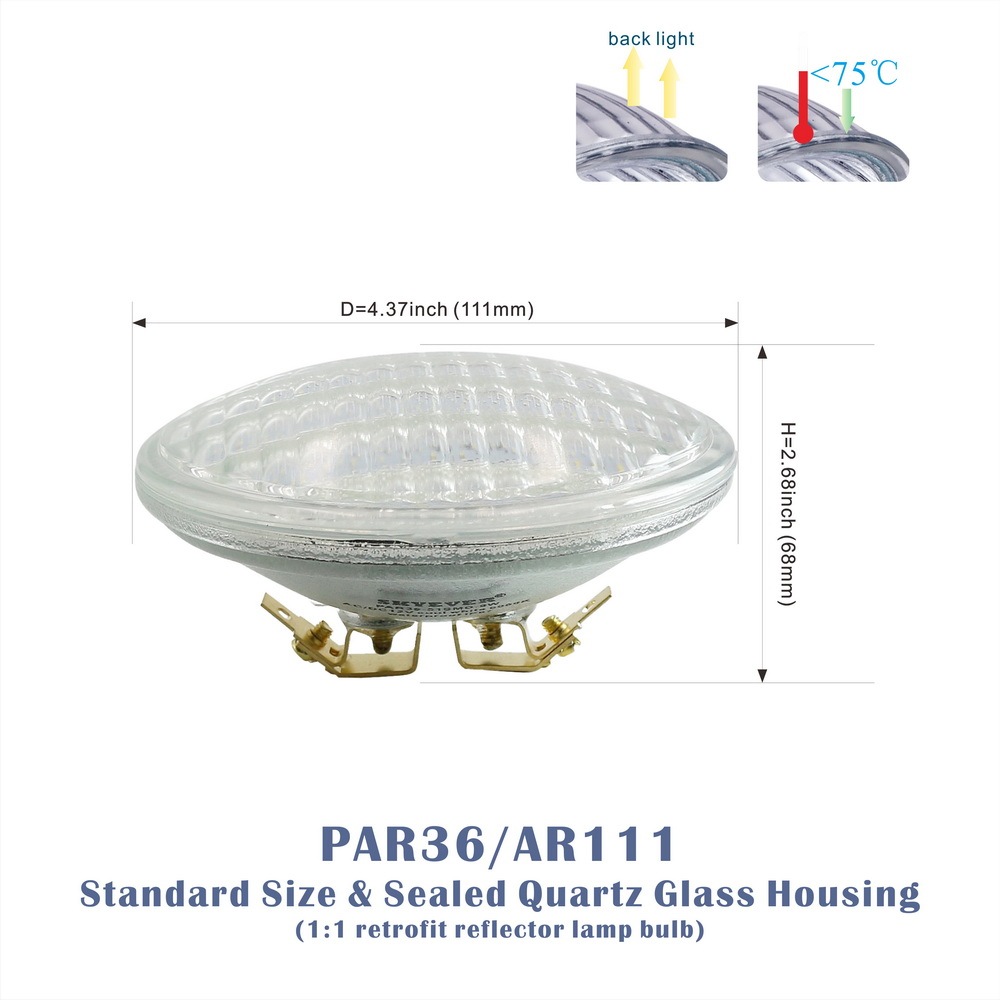

- Diameter: D=111mm (4.37inch)
- Overall Height: H=68mm (2.68inch)
- Input Voltage: AC/DC 12 Volts
- Driver Type: IC driver (independent)
- Power Factor (PF): 0.5

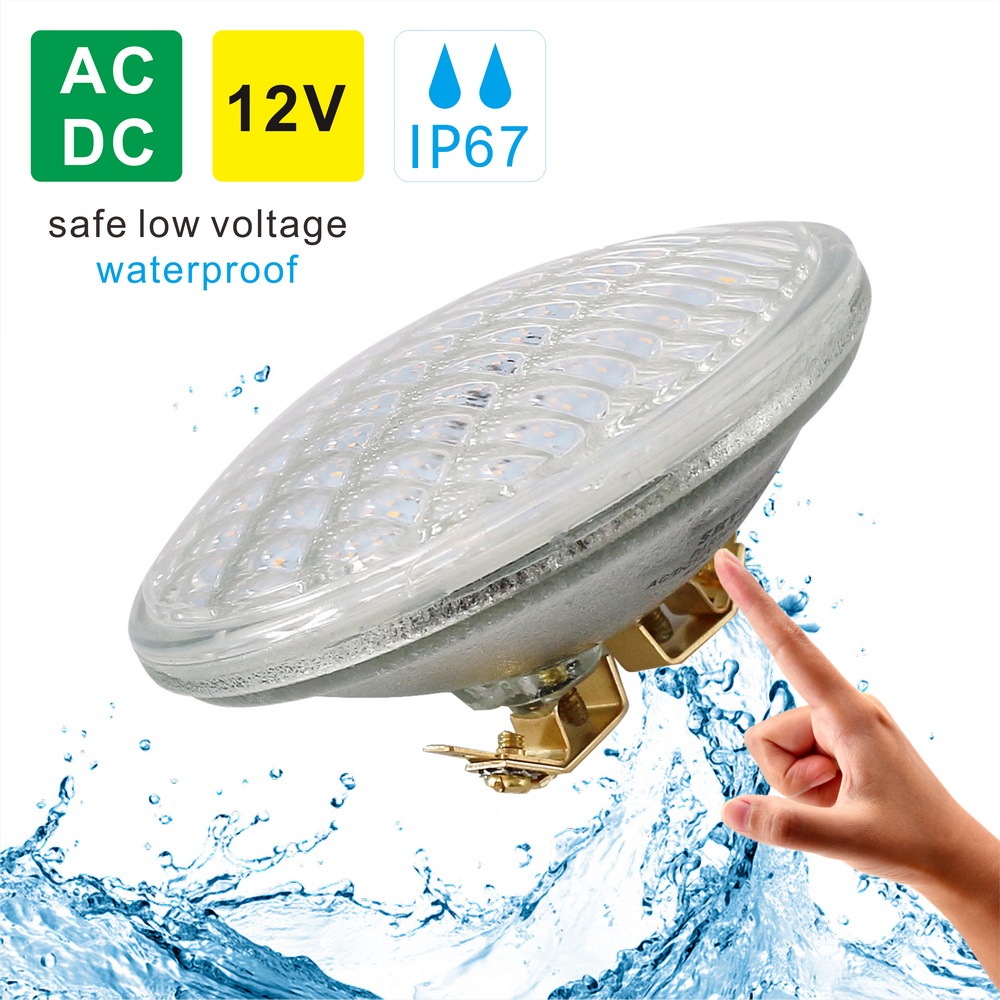

- IP Rating: waterproof IP67
- Lifetime Span: 25,000 Hrs
- Warranty: 2 years
Data of the Models
- Model Type: PAR36-SMD-9W-GA01/LV
- Rated Power: 9 Watts
- LED Chips: 51*SMD2835
- Power Consumption: 9.0W±5%
- Luminous Flux: 900lm±10%
- Lumen Efficiency: 90-100lm/W
- EQ to halogen: 75W
- Net Weight: 245g
- Model Type: PAR36-SMD-12W-GA01/LV
- Rated Power: 12 Watts
- LED Chips: 75*SMD2835
- Power Consumption: 12.0W±5%
- Luminous Flux: 1200lm±10%
- Lumen Efficiency: 90-100lm/W
- EQ to halogen: 100W
- Net Weight: 250g
Conformity/Certification
Features & Advantages
- High rigidity sealed quartz glass housing, same shape and size as halogen PAR36/R111.
- IP67 waterproof & rustproof, stable performance in humid circumstance even bad weather.
- Many light color options available, good for landscape lighting and garden lighting use.
- AC/DC 12 Volts low voltage input, safe for touch and DIY wiring, ideal for public area.
- Adapt to transformer, battery or solar power supply well, good for off-grid or vehicle use.
- Multi-purpose lamp base with screw terminal, easy installation, can work without light fixture.
- Ultra-bright SMD LED chips LM80 passed, up to 90-100lm/W real lumen efficiency.
- 120 degree flood wide beam, uniform soft light emitting without flicker or glare.
- Independent IC driver, 5 years lifetime (work 12 hours/day), FCC passed.
Application/Typical Light Fixtures
- outdoor, exterior, semi-outdoor, off-grid, off-shore
- landscape lighting, pool lighting, flood lighting, dock lighting, work lighting, off-grid lighting,
camp lighting, solar lighting, equipment lighting, heavy-duty lighting, vehicle lighting ...
- garden, yard, park, lawn, tree, green belt, footpath, square, fountain plaza, stables, greenhouse, outlets, outdoor restaurant, open-air bar,
port, pier, worksite, garage, car wash, prefab house, house boat, offshore platform, camping site, outdoor kitchen, bathing beach,
tractor, snow blower, off-road vehicle, UTV, ATV, Quad-Bike, motorcycle, trailer, ship, cargo ferry, yacht, fishing boat …
- well light, ground light, spike light, lawn light, tree light, uplight, (outdoor) recessed lamp, deck light, pool light,projection light, flood light,
work lamp, camping lamp, head lamp, sealed beam, automotive light bar, roof bar bumper, fog light …
