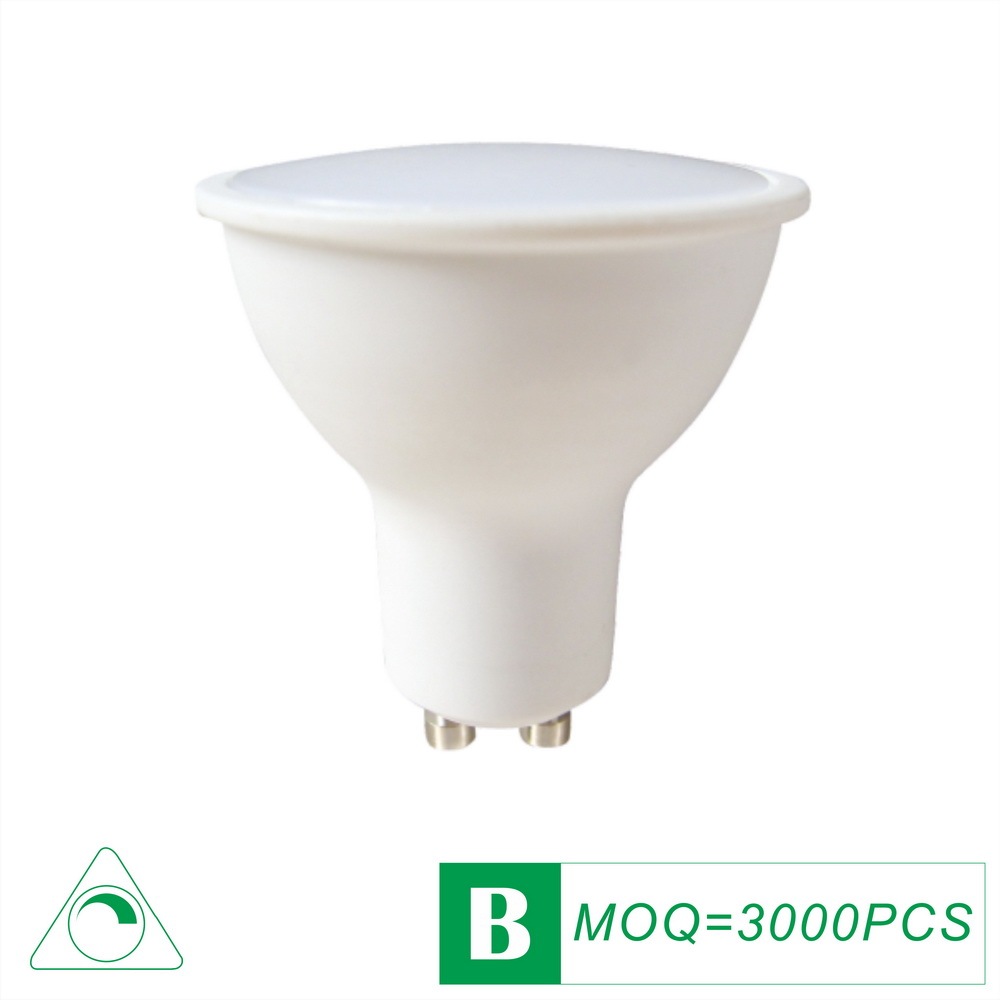

LED MR16 Spot Light Cup 6W AC 120V/230V GU10 Dimmable WFL

Basic Parameters

• Housing Material: flame retardant PBT-Aluminum
• Front Cover: frost PC cover
• Heat Sink: Aluminum body shell + MPCB
• Beam Angle: 120°
• Lamp Base/Cap: GU10
• Color Temperature (CCT): 3000K/4200K/6500K±300K
• Color Render Index (CRI/Ra): >80
• Dimming: dimmable (SCR 10%-100%, by LED dimmer)
• Input Voltage: AC90V-130V/AC170V-265V
• Driver Type: switching IC driver (DOB, no flicker)
• Power Factor (PF): 0.5
• Lifetime Span: 15,000 Hrs
• Warranty: 2 years

Data of the Models

• Model Type: GU10-SMD-6W-PA01/A-DIMS
• Rated Power: 6 Watts
• Diameter (mm/inch): 50mm/1.97inch
• Height (mm/inch): 57mm/2.24inch
• LED Chips: 7*SMD2835
• Power Consumption: 6.0W±5%
• Luminous Flux: 540lm±10%
• Lumen Efficiency: 80-90lm/W
• Halogen Equivalent: 50W

Conformity/Certification

Applications & Typical Light Fixtures

• indoor, domestic, household, interior
• spot lighting, local lighting, atmospheric lighting, residential lighting … commercial lighting, office lighting …
• bedroom, living room, dining room, study, kitchen, corridor, passage, aisle, hallway, vestibule, entry …
• office, reception, meeting room, showroom, department store, boutique, shopping mall, supermarket, plaza, outlets, show window,
• museum, exhibition hall, hotel, lobby, restaurant, café, canteen, reading room, rest room, kindergarten, hospital, nursery, library …
• ceiling downlight, embedded downlight, recessed downlight, track light, spotlight, mirror front lamp, fresco lamp, vanity light  …
