Basic Parameters
- Housing Material: PP + Stainless Steel
- Front Cover: high tensile PS cover with grid
- Color Temperature (CCT): 3000K/6500K±300K
- Color Render Index (CRI/Ra): >80

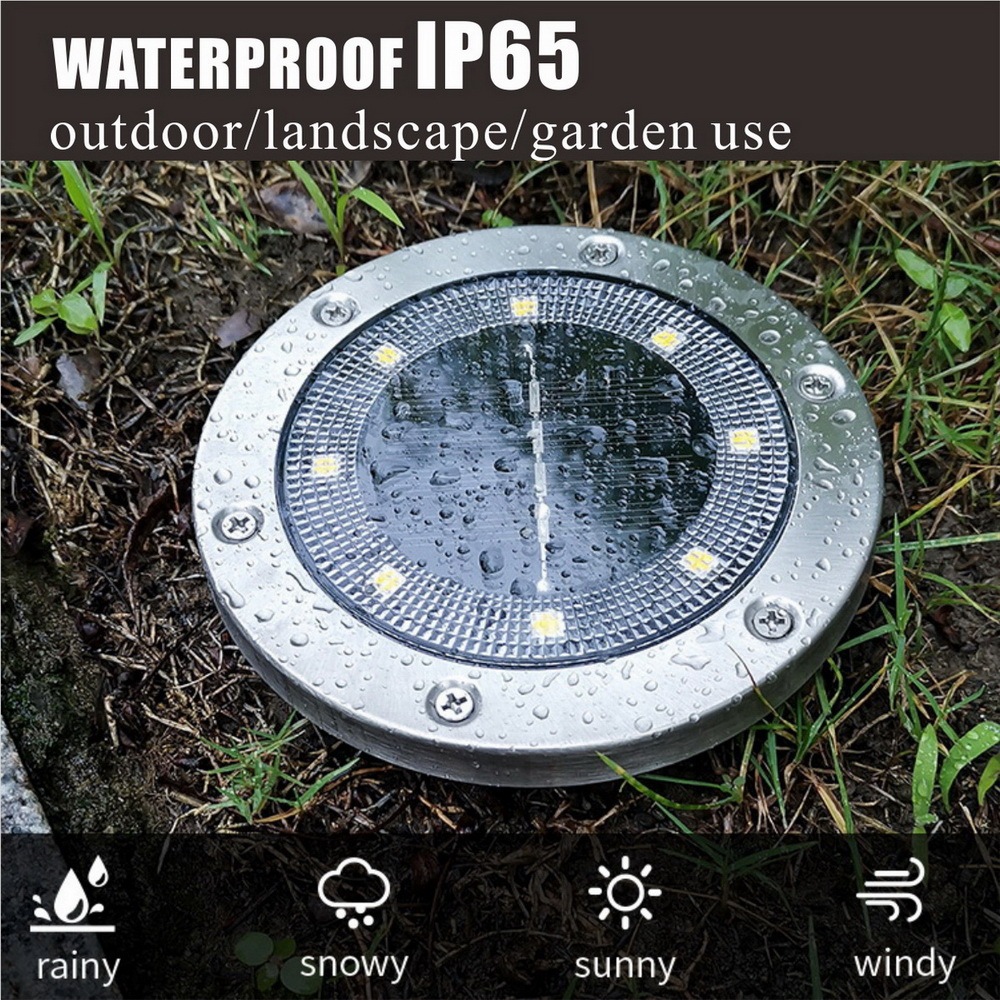

- IP Rating: waterproof IP65
- Lifetime Span: 10,000 Hrs
- Warranty: 1 year
- Solar Panel: film solar cell
- Storage Battery: Ni-MH 1.2V
- Charging Time: 6-8 Hours
- Working Time: 8-10 Hours
- Control Method: Light Sensor & On-Lamp Switch
Data of the Models
- Model: SGL002-8SMD-PM01
- Color of Housing: Black/Sliver
- Diameter(D): 115mm (4.5inch)
- Overall Height(H): 130mm (5.1inch)
- Film Solar Cell Spec: 2V 100mA 65*65mm
- Battery Capacity: 400mAh
- LED Chips: 8*SMD5050
- Power Consumption: 0.4W±5%
- Net Weight: 120g
- Model: SGL003-8SMD-PM02
- Color of Housing: Black/Sliver

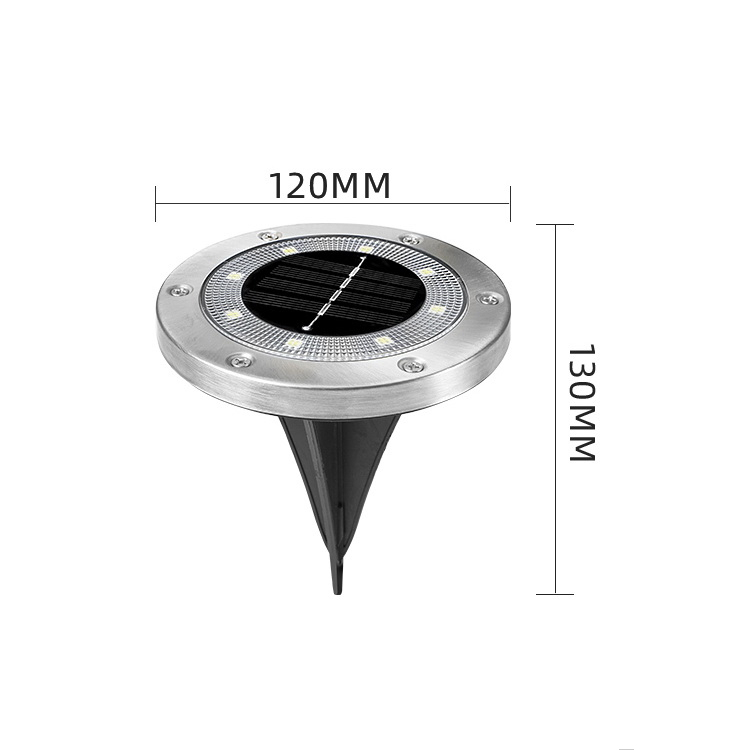

- Diameter(D): 120mm (4.7inch)
- Overall Height(H): 130mm (5.1inch)
- Film Solar Cell Spec: 2V 130mA 85*85mm
- Battery Capacity: 600mAh
- LED Chips: 8*SMD5050
- Power Consumption: 0.4W±5%
- Net Weight: 130g
Conformity/Certification
Features & Advantages
- PP+Steel housing, IP65 waterproof protection rating.
- Powered by film solar cell, safe touch, self-powered and cable free.
- 8-10 hours continuously working after full charging within 6-8 hours.
- High quality Ni-MH storage battery, Keep lighting for around 3 days in cloudy or rainy days.
- High tensile PS lens with grid, work well in humid circumstance or even bad weather.
- Smart shape and exquisite appearance, easy installation by high toughness foot (spike).
- On/Off controlled either by build-in light sensor automatically or by on-lamp switch.
- Long lifetime up to 10,000 hours, maintenance free, conform to CE & FCC standards.

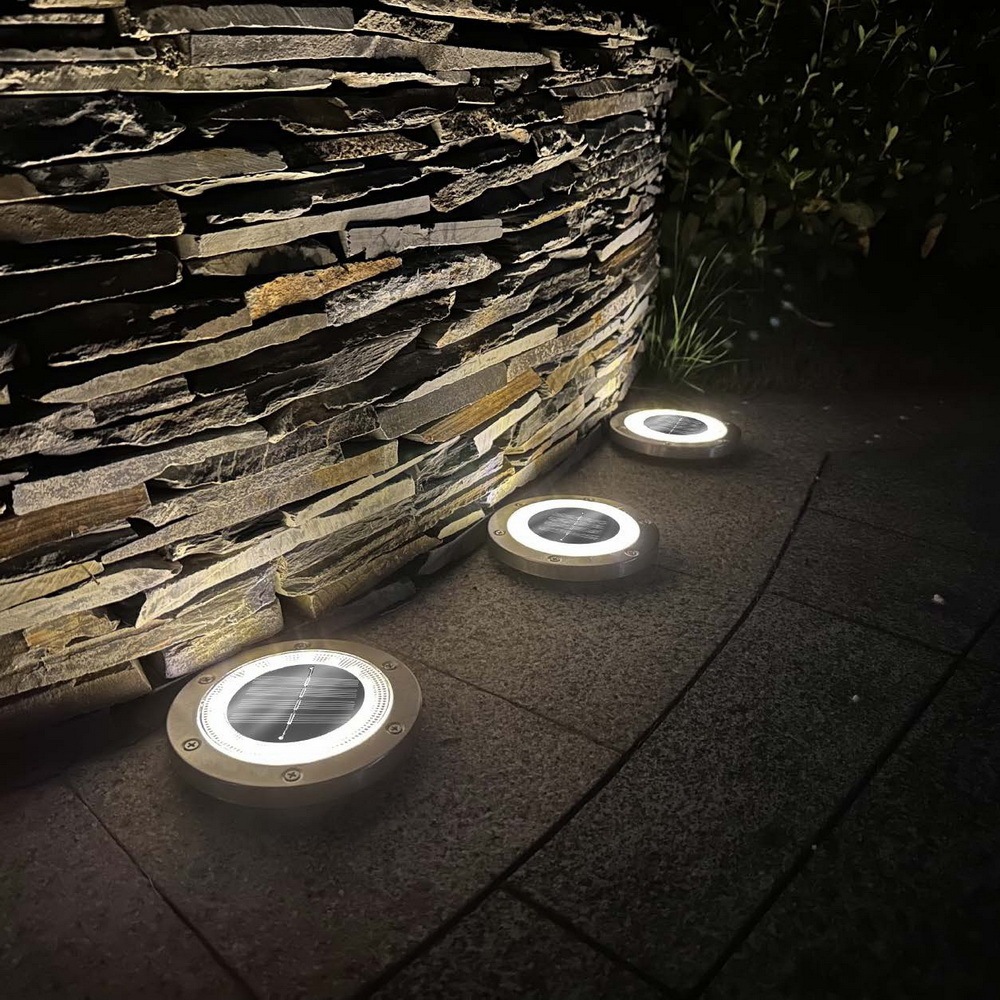

Applications & Typical Light Fixtures
- outdoor, semi-outdoor, exterior, decoration
- landscape lighting, garden lighting, waterscape lighting …
- garden, yard, park, lawn, green belt, flowerbed, road, walkway, footpath, sideway,
square, fountain plaza, outlets, bathing beach, outdoor restaurant, outdoor café, open-air bar …
Attention
- Solar garden light should be installed correctly to ensure the designed performance.
Please install the light at a place where the solar panel can get the fully sunlight as possible as can.
- Sometimes the light may stop working due to long time bad environment without enough sunlight,
including heavy rain, typhoon, super low temperature, etc. Normally it will restart with 3 days.
