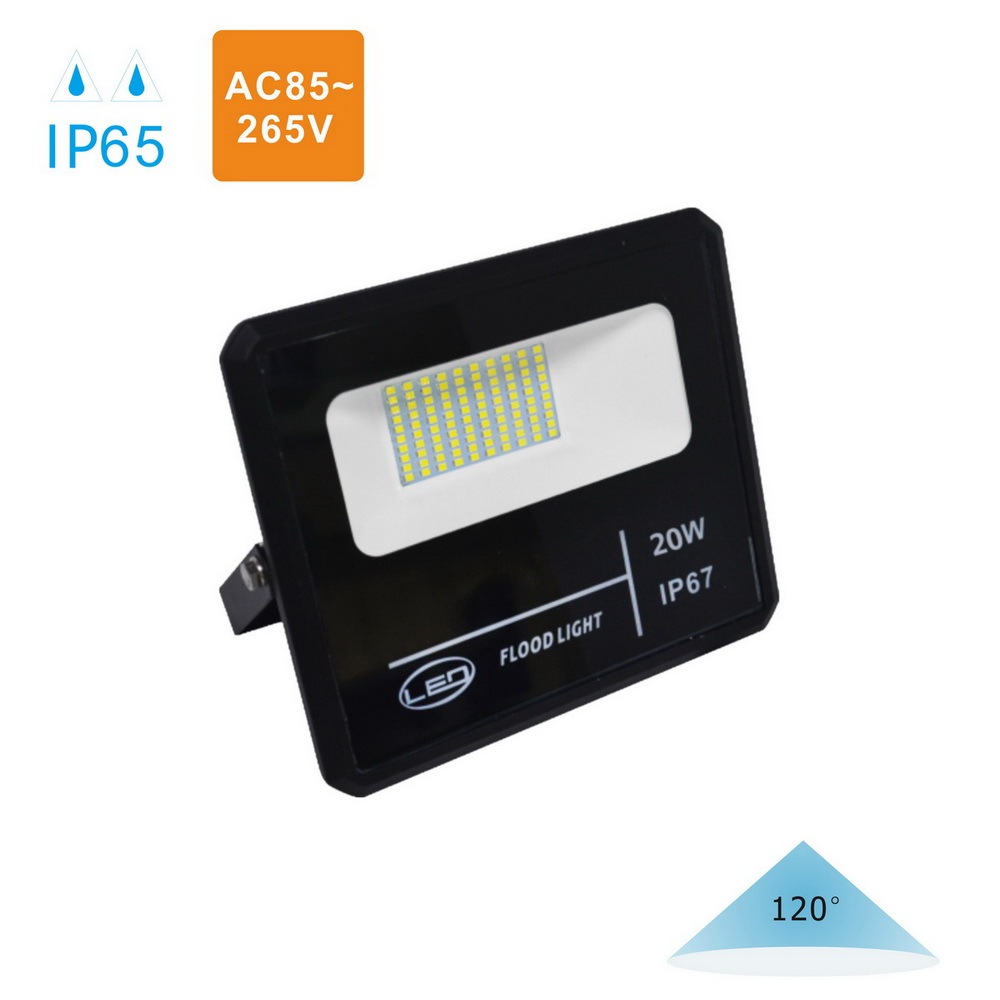

Basic Parameters
- Housing: Die-cast Aluminum
- Front Cover: Tempered Glass
- Beam angle: 120°
- LED chip: SMD2835
- LED chip lumen efficiency: 90-100lm/W
- Color temperature(CCT): 3000K/6500K±300K
- Color Render Index(CRI/Ra):>70

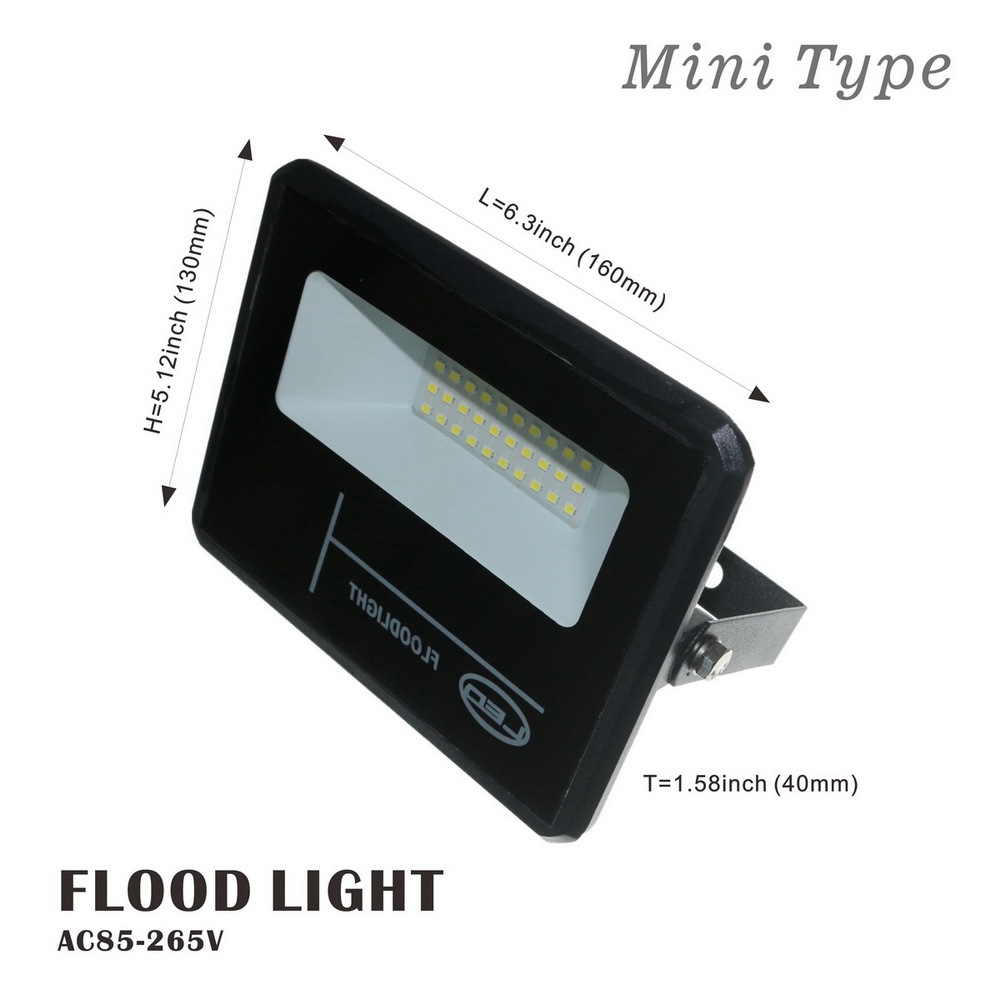

- Dimensions: 160*30*40mm
- IP Rating: IP65
- Warranty: 2 years
Data of the Models
- Model: FL-SMD-20W-A01/S
- Rated Power: 20 Watts
- LED Chips: 40*SMD2835
- Power Consumption: 18.0W±5%
- Luminous Flux: 1600lm±10%
- Model: FL-SMD-30W-A01/S
- Rated Power: 30 Watts
- LED Chips: 50*SMD2835
- Power Consumption: 27.0W±5%
- Luminous Flux: 2400lm±10%
Conformity/Certification
Features & Advantages
- Die-cast pure Aluminum body shell, good heat dissipation for long time work.
- IP65 waterproof protection rating, ideal projection lamp for outdoor lighting in humid surrounding.
- Super-thin design, convenient for installation, easy to adjust the direction of illumination.
- Ultra-bright SMD LED chips of up to 90-100 lm/W efficiency, energy saving and cost saving.
- AC 85V~265V wide input voltage, stable performance in any mains voltage electric power grid.
- 120 degree flood wide beam angle, good to local lighting or field lighting for small area.
- Independent high quality LED driver inside with multiple protection, long lifetime.
Applications & Typical Light Fixtures
- outdoor, semi-outdoor, indoor
- flood lighting, projection lighting, area lighting, field lighting,
- landscape lighting, garden lighting, architectural lighting …
- port lighting, industrial lighting, work lighting …
- garden, yard, park, lawn, tree, green belt, footpath, square, plaza, outlets …
- garden wall, building façade, external wall, stables, greenhouse, construction site, night fair …
- port, ferry, wharf, pier, warehouse, workroom, workshop, worksite, garage, car wash …
