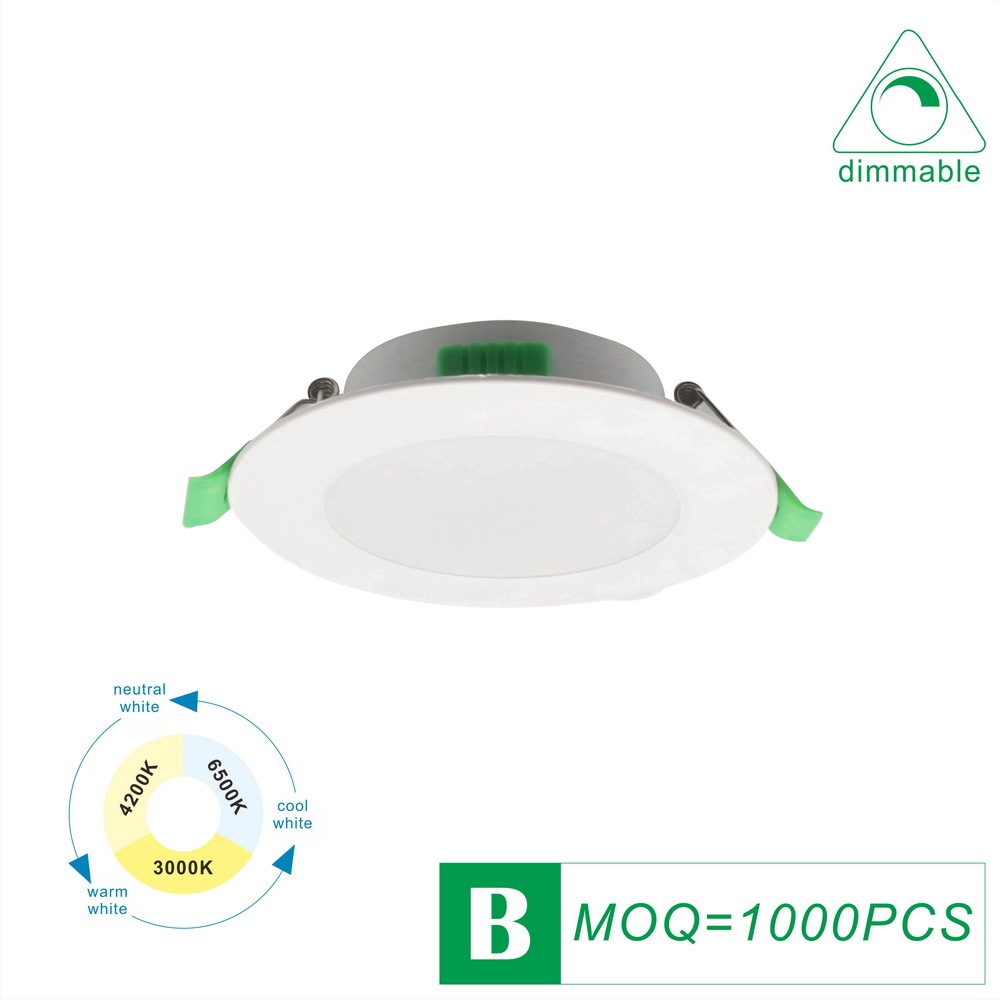

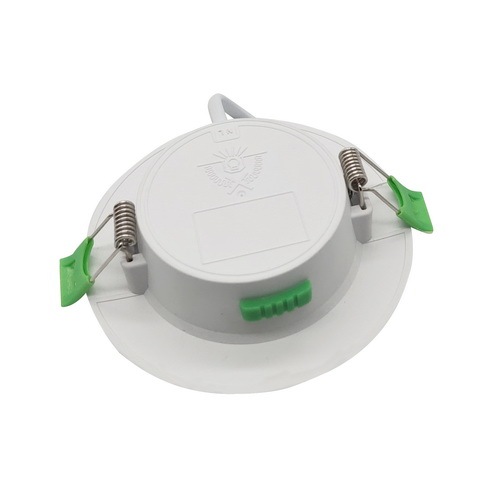

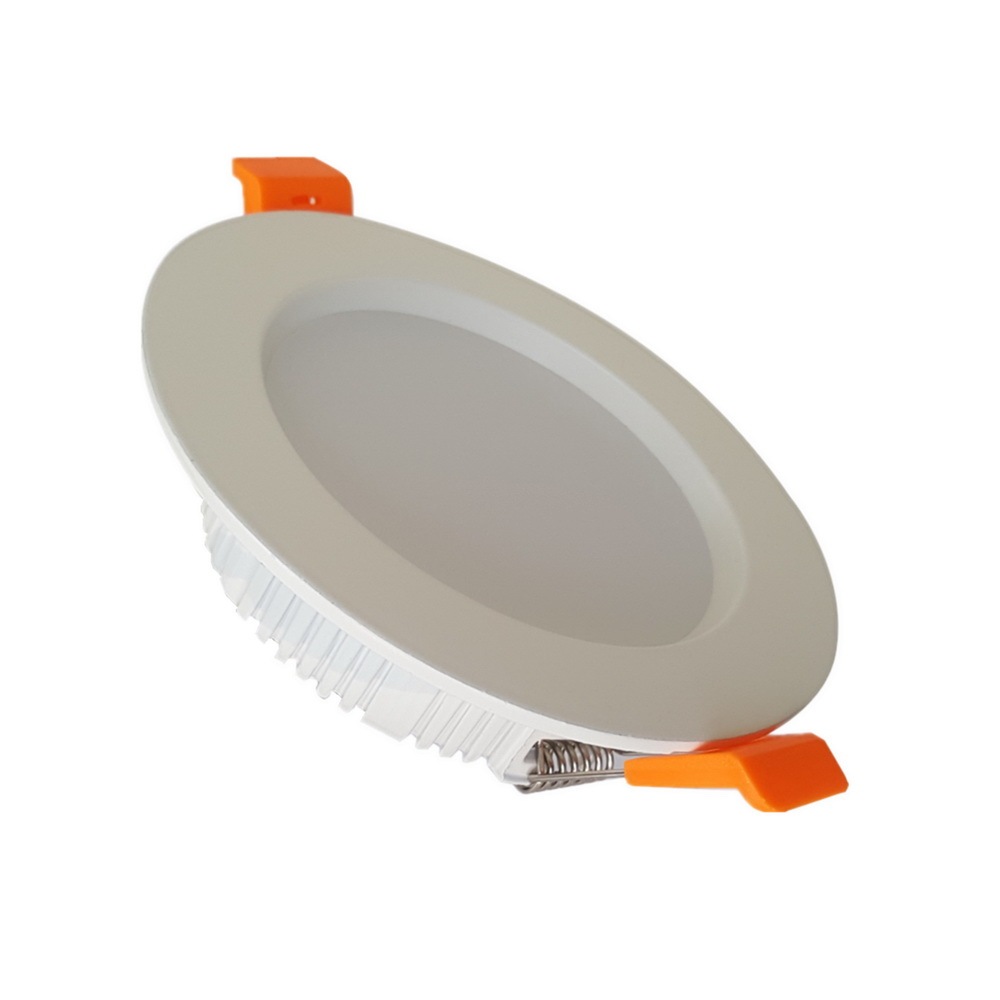

Ultra-Thin Plastic-Al LED Downlight Flood 2.5 INCH 5 Watts AC110V/AC220V Dimmable

Basic Parameters

• Housing Material: PBT-Aluminum
• Diffuser Material: PC
• Beam Angle: 100°
• Color Temperature (CCT): 3000K/4200K/6500K±300K
• (or.) 3000K-4200K-6500K±300K adjustable by on-lamp switch
• Color Render Index (CRI/Ra): >80
• Dimming: non-dimmable (or.) 3-step dimmable
• (or.) dimmable (SCR 10%-100%, by LED dimmer)
• Input Voltage: AC90V-130V/AC170V-265V
• Driver Type: switching IC driver (DOB, build-in, no flicker)
• Power Factor (PF): 0.5
• Lifetime Span: 15,000 Hrs
• Warranty: 2 years

Data of the Models

• Model:
• DL-SMD-5W-PA02/A-3CCT/S
• DL-SMD-5W-PA02/A-DIM/3STEP
• DL-SMD-5W-PA02/A-DIMS
• Rated Power: 5 Watts
• Diameter (D): 100mm/3.94in
• Overall Height (H): 22mm/0.87inch
• Cut-out: 75mm/2.95inch
• LED Chips: 12*SMD2835
• Power Consumption: 5.0W±5%
• Luminous Flux: 400lm±10%
• Lumen Efficiency: 70-80lm/W

Conformity/Certification

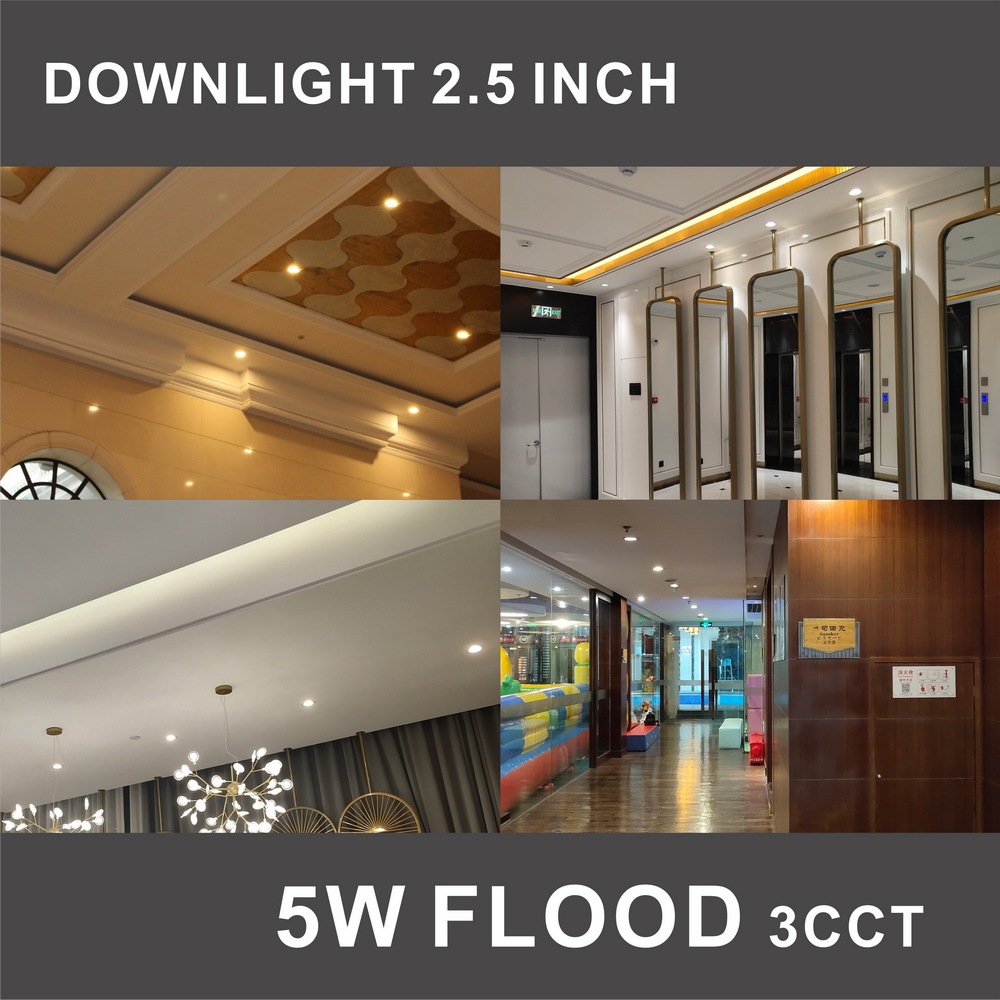

Applications & Typical Light Fixtures

• indoor, domestic, household, interior
• general lighting, local lighting, accent lighting, decoration lighting, residential lighting, commercial lighting, office lighting …
• bedroom, living room, dining room, bathroom, washroom, toilet, corridor, aisle, hallway, vestibule,
  office, reception, meeting room, showroom, shop, store, show window, hotel, inn, lobby,restaurant, café, bar, pub,
  club, dance hall, KTV, casino, reading room, rest room, school, hospital …
