Basic Parameters
- Housing Material: quartz glass
- Front Cover: frost glass cover + integral glass lens
- Heat Sink: Aluminum block
- Beam Angle: 30°
- Lamp Base/Cap: multi-purpose screw terminal

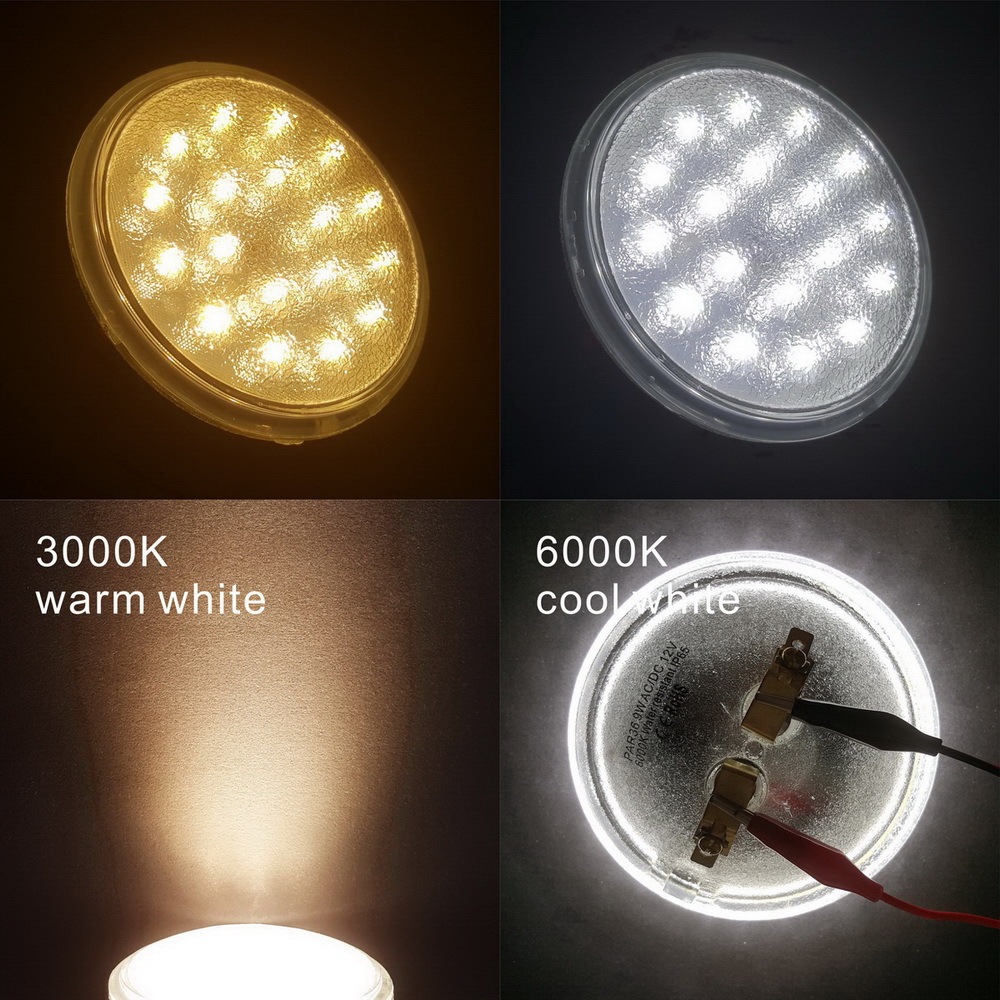

- Color Temperature (CCT): 3000K/4200K/6000K±200K
- Color Render Index (CRI/Ra): >80

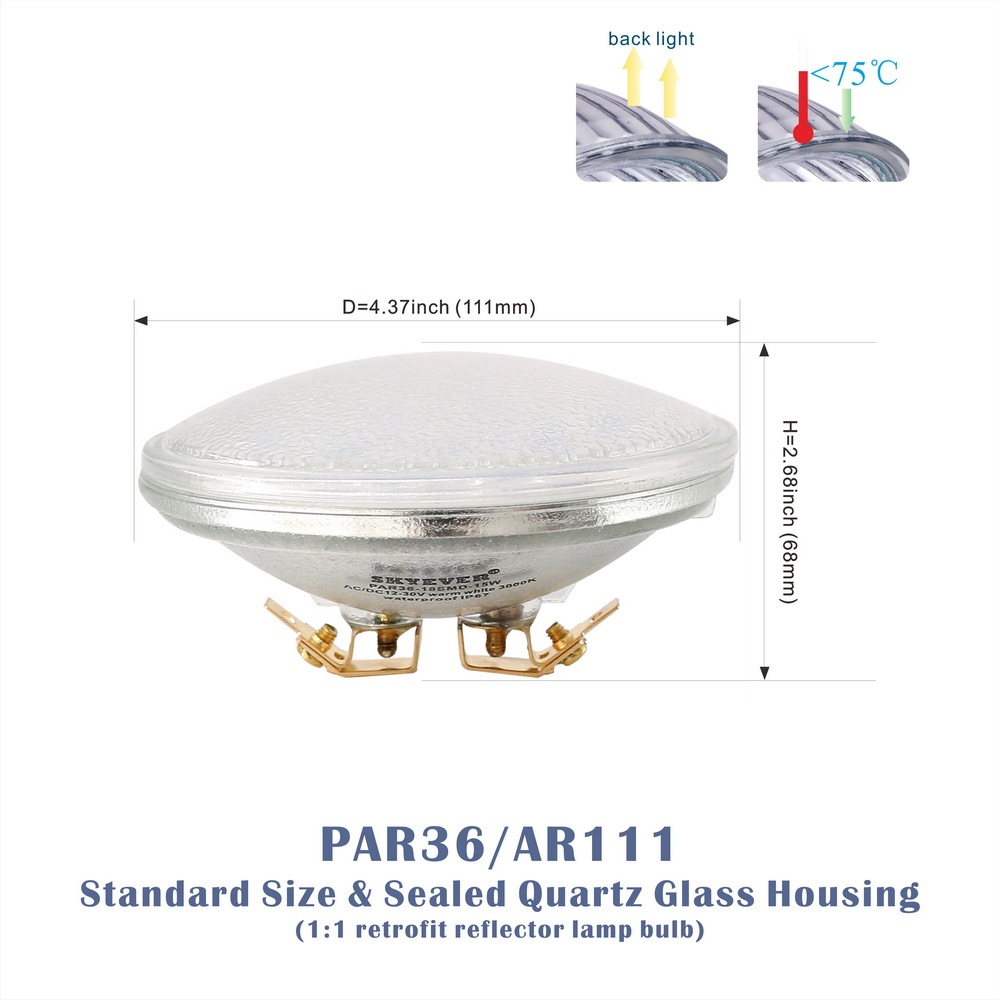

- Diameter: D=111mm (4.37inch)
- Overall Height: H=68mm (2.68inch)
- Input Voltage: AC/DC 10V-30V
- Driver Type: IC driver (independent)
- Power Factor (PF): 0.5
- IP Rating: waterproof IP67
- Lifetime Span: 25,000 Hrs
- Warranty: 2 years
Data of the Models
- Model Type: PAR36-SMD-15W-GA02/LVS
- Rated Power: 15 Watts
- LED Chips: 18*SMD2835
- Power Consumption: 15.0W±5%
- Luminous Flux: 1800lm±10%
- Lumen Efficiency: 110-120lm/W
- EQ to halogen: 150W
- Net Weight: 305g
Conformity/Certification
Features & Advantages

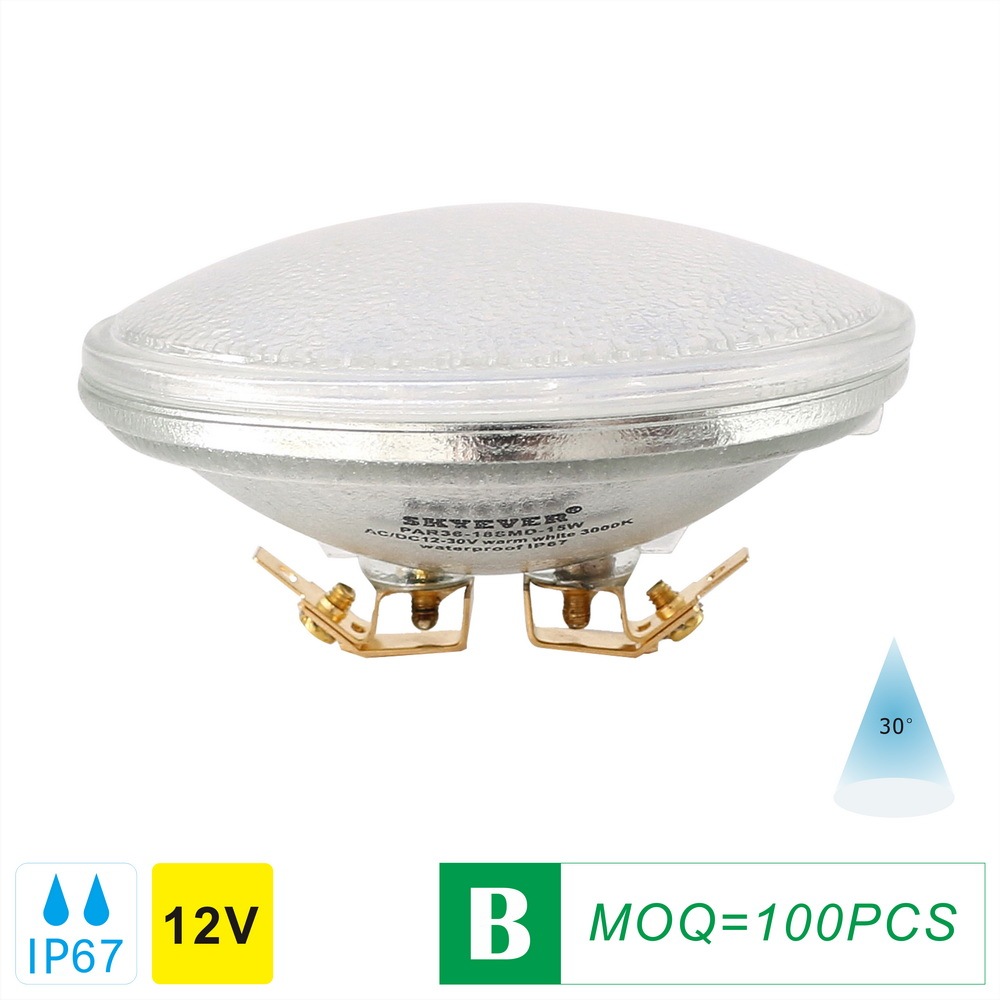

- High rigidity sealed quartz glass housing, same shape and size as halogen PAR36/R111.

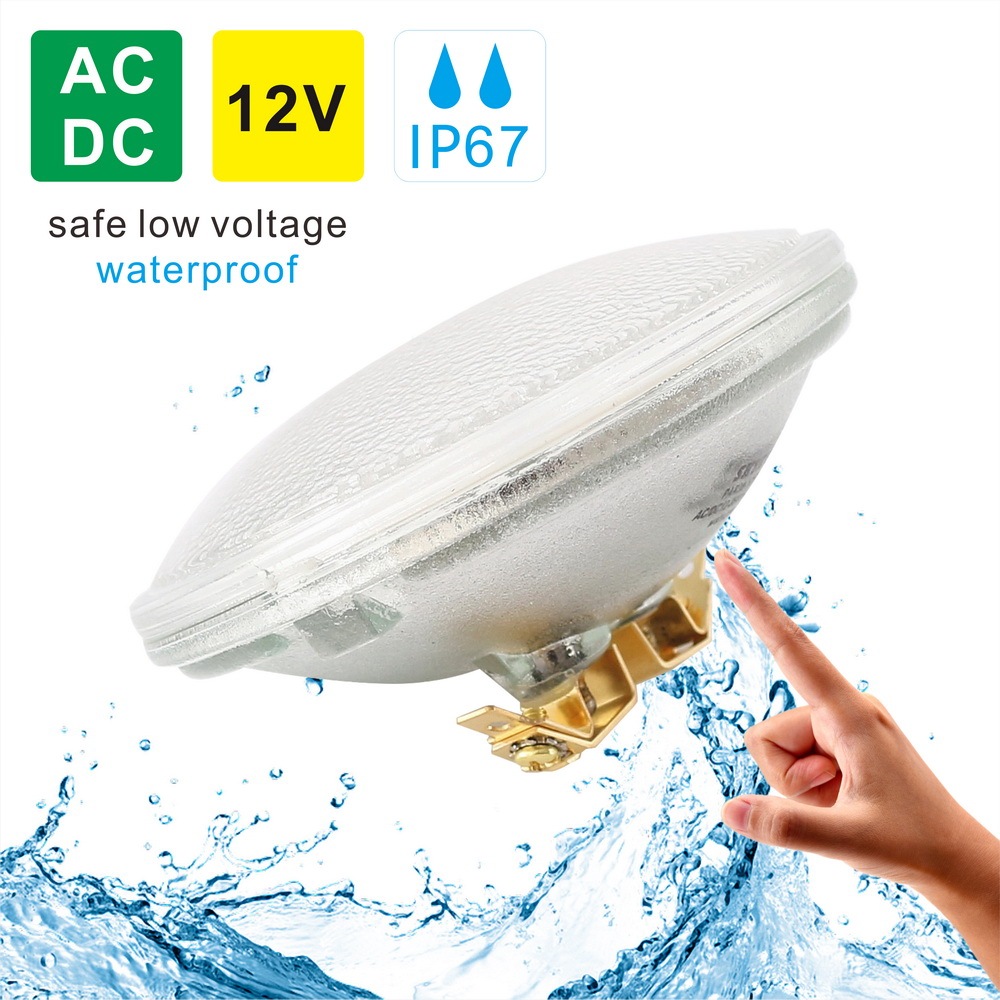

- IP67 waterproof & rustproof, stable performance in humid circumstance even bad weather.
- Many light color options available, good for landscape lighting and garden lighting use.
- AC/DC 12 Volts or 24 Volts low voltage input, safe for touch and DIY wiring, ideal for public area.
- Adapt to transformer, battery or solar power supply well, good for off-grid or vehicle use.

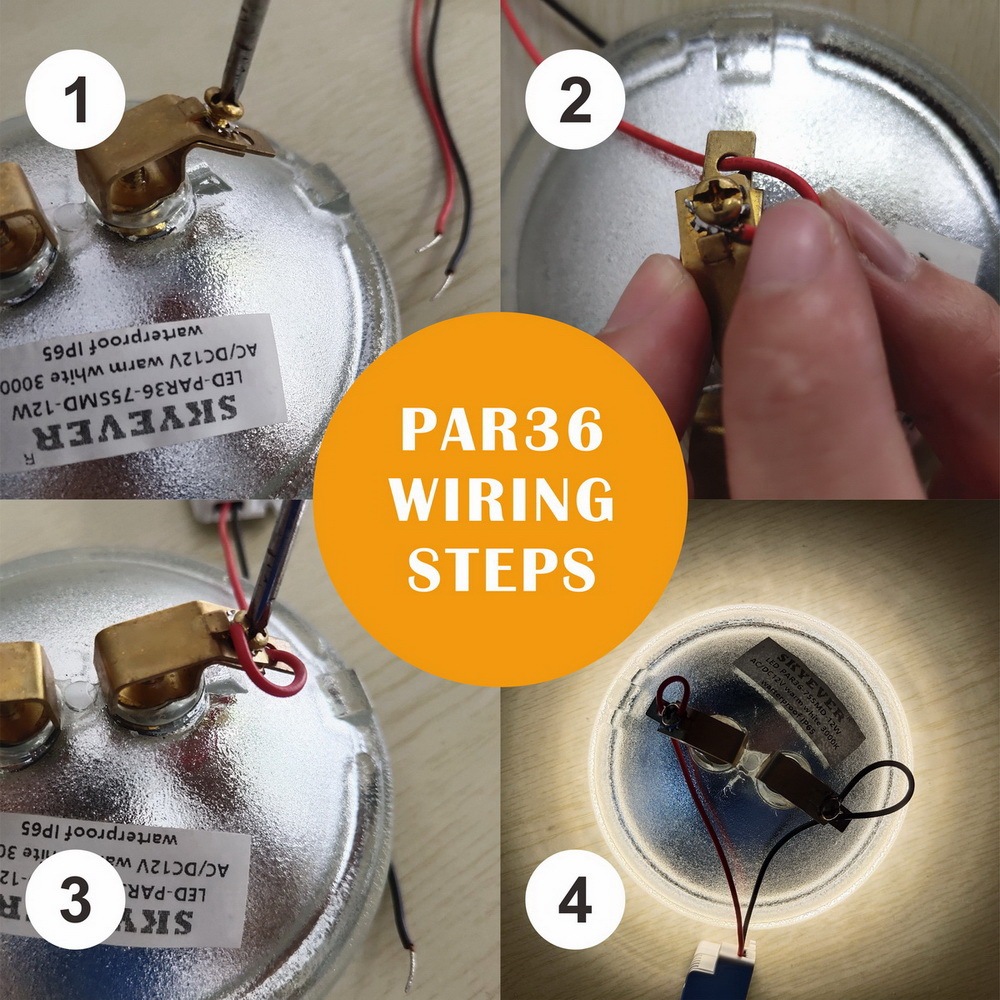

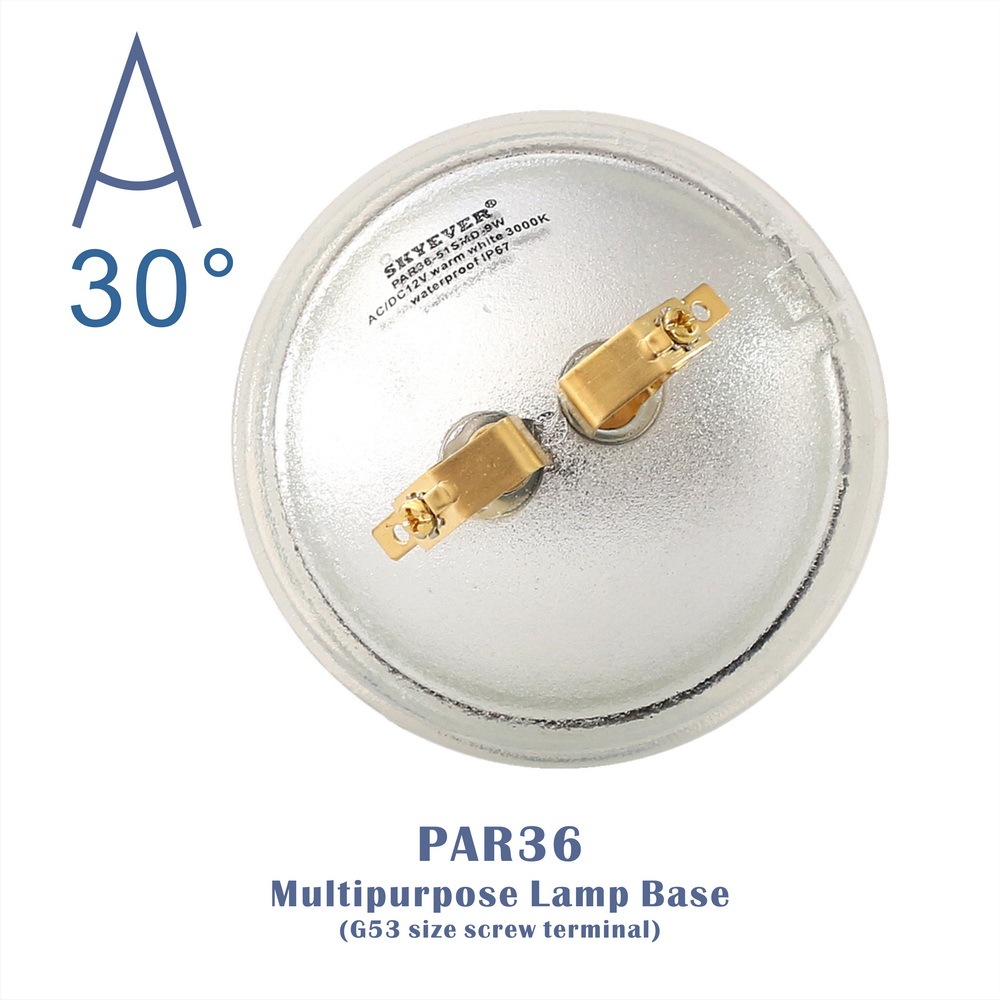

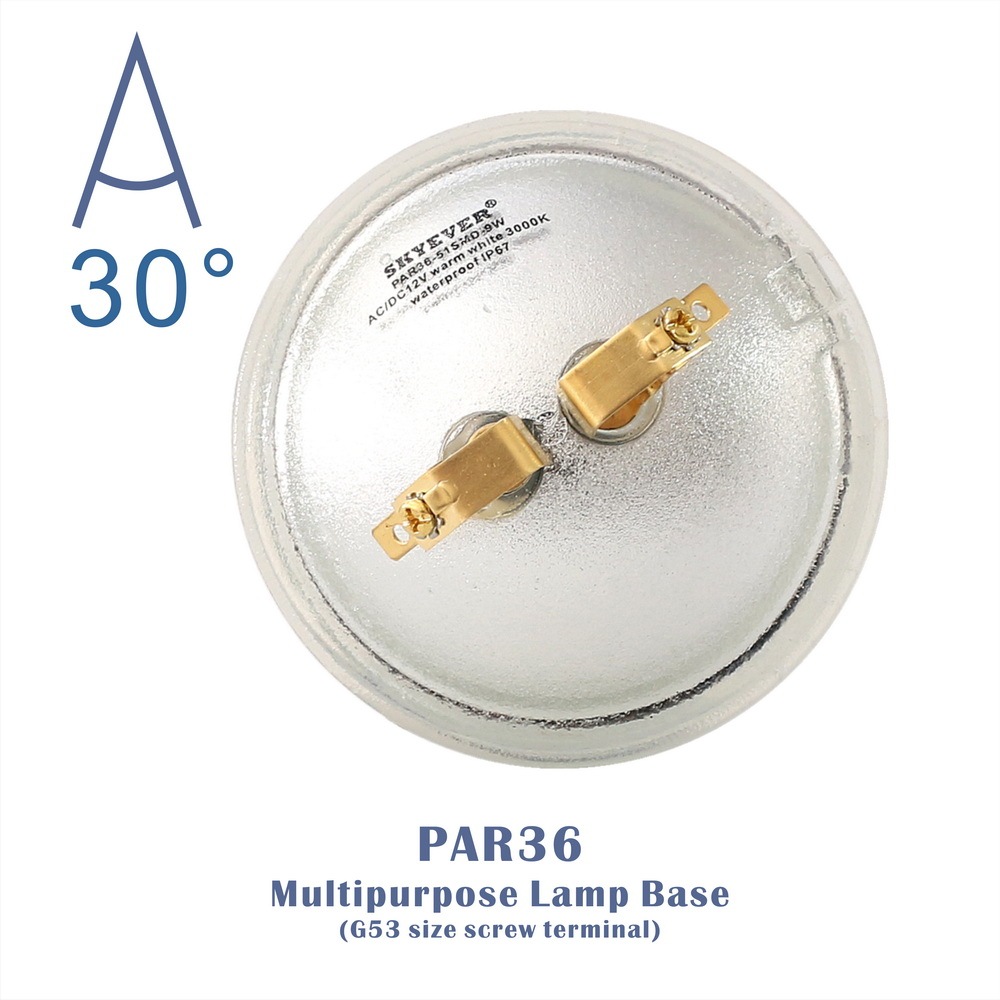

- Multi-purpose lamp base with screw terminal, easy installation, can work without light fixture.
- Ultra-bright SMD LED chips LM80 passed, up to 110-120lm/W real lumen efficiency.
- Reinforcement Aluminum heat-sink in 15W bulb, work well in enclosed lamps.
- 30 degree spot narrow beam, uniform light emitting without flicker.
Applications & Typical Light Fixtures
- outdoor, exterior, semi-outdoor, off-grid, off-shore
- landscape lighting, pool lighting, architectural lighting, spot lighting, stage lighting, off-grid lighting,
camp lighting, solar lighting, equipment lighting, heavy-duty lighting, vehicle lighting …
- garden, yard, park, lawn, tree, flowerbed, walkway, square, fountain plaza, swimming pool, building façade, external wall, pole,
outlets, outdoor café, open-air bar, outdoor stage, Quonset, house boat, offshore platform, camping site, cookhouse, bathing beach,
tractor, snow blower, off-road vehicle, UTV, ATV, karting, motorbike, cross-country vehicle, truck, trailer, ship, cargo ferry, yacht, fishing boat …
- well light, spike light, lawn light, tree light, uplight, under-ground lamp, (outdoor) recessed lamp, deck light, pool light,
high-pole lamp, wall washer lamp, projection light, spot light, footlight, camping lamp,
head lamp, sealed beam, automotive light bar, roof bar bumper, fog light …
