Order Small QTY (<30pcs)
Basic Parameters
- Housing Material: quartz glass
- Front Cover:
- quartz glass cover with grid (honeycomb)
- Heat Sink: Aluminum block

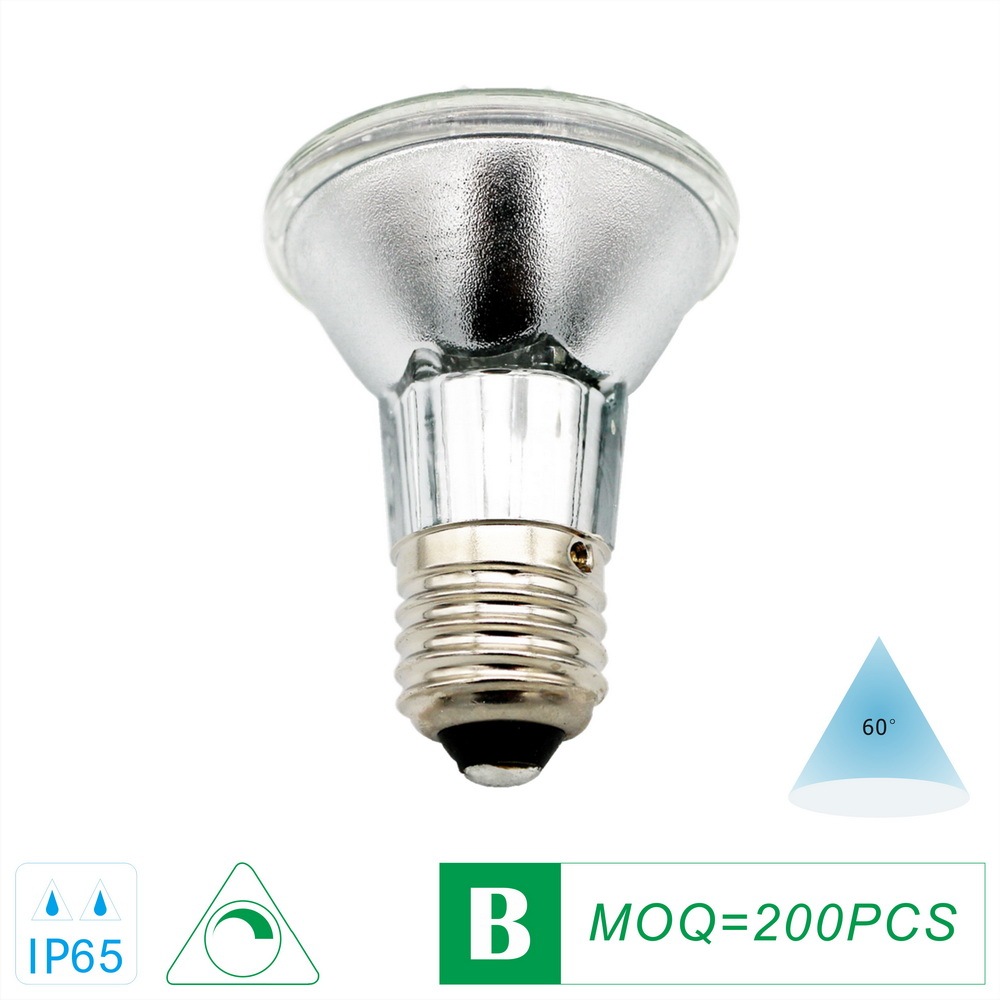

- Beam Angle: 30°/60°
- Lamp Base/Cap: E26/E27
- Color Temperature (CCT): 3000K/4200K/6000K±200K
- Color Render Index (CRI/Ra): >80 / >90

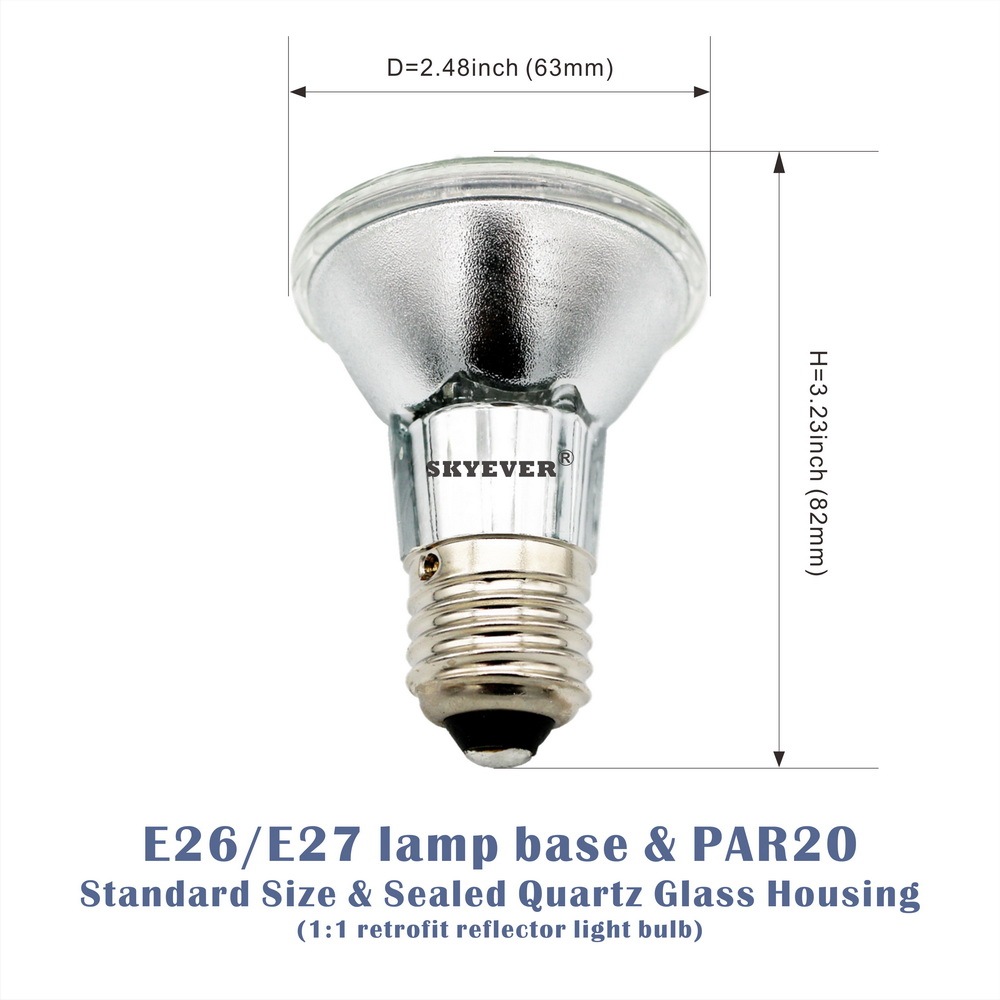

- Diameter: D=63mm (2.48inch)
- Overall Height: H=82mm (3.23inch)
- Input Voltage: AC110V-130V/AC220V-240V
- Driver Type: linear IC driver
- (independent, no flicker)
- Dimming: dimmable
- Power Factor (PF): 0.9
- IP Rating: IP65 (housing only)
- Lifetime Span: 15,000 Hrs
- Warranty: 2 years
Data of the Models
- Model Type: PAR20-SMD-9W-GA02/L-DIM
- Rated Power: 9 Watts
- LED Chips: 1*COB (7-9W)
- Power Consumption: 7.0W±5%
- Luminous Flux: 630lm±10%
- Lumen Efficiency: 90-100lm/W
- EQ to halogen: 50W
- Net Weight: 106g
Conformity/Certification
Features & Advantages
- LED spot light bulbs that to replace halogen PAR20, low temperature, UV free.

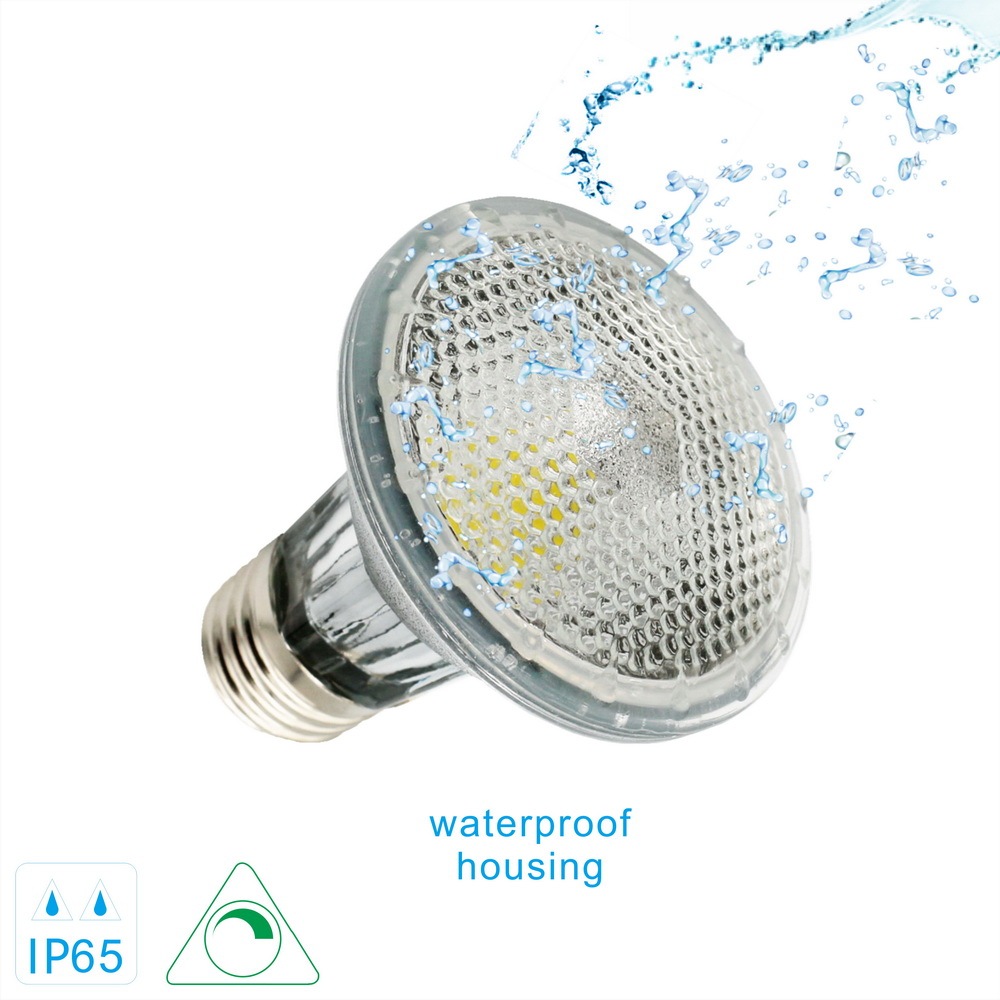

- Durable quartz glass shell (IP65 housing), ideal for indoor/outdoor spaces with moisture.
- Ultra-bright COB LED chips LM80 passed, >90 CRI model available for high-end commercial use.
- Glass front cover with honeycomb grids, 30° or 60° spot narrow beam, uniform light emitting.
- Aluminum block heat-sink inside, stable performance in semi-enclosed light fixtures.
- AC110-130V or AC220-240V mains voltage input, suitable for any E26 or E27 light fittings.
- Dimmable circuit inside, can be roughly dimmed by traditional halogen dimmers.
- Independent linear IC driver, 15,000 hours lifetime span, flicker-free.
Application/Typical Light Fixtures

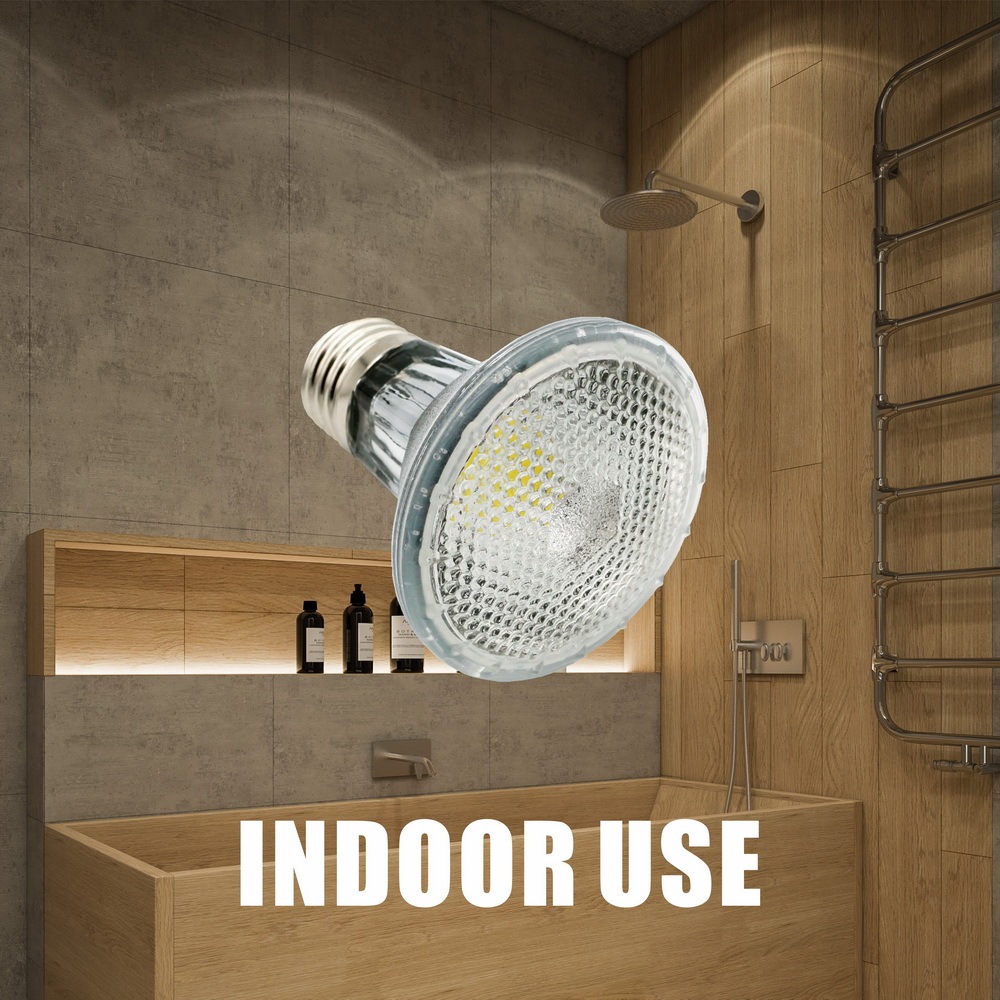

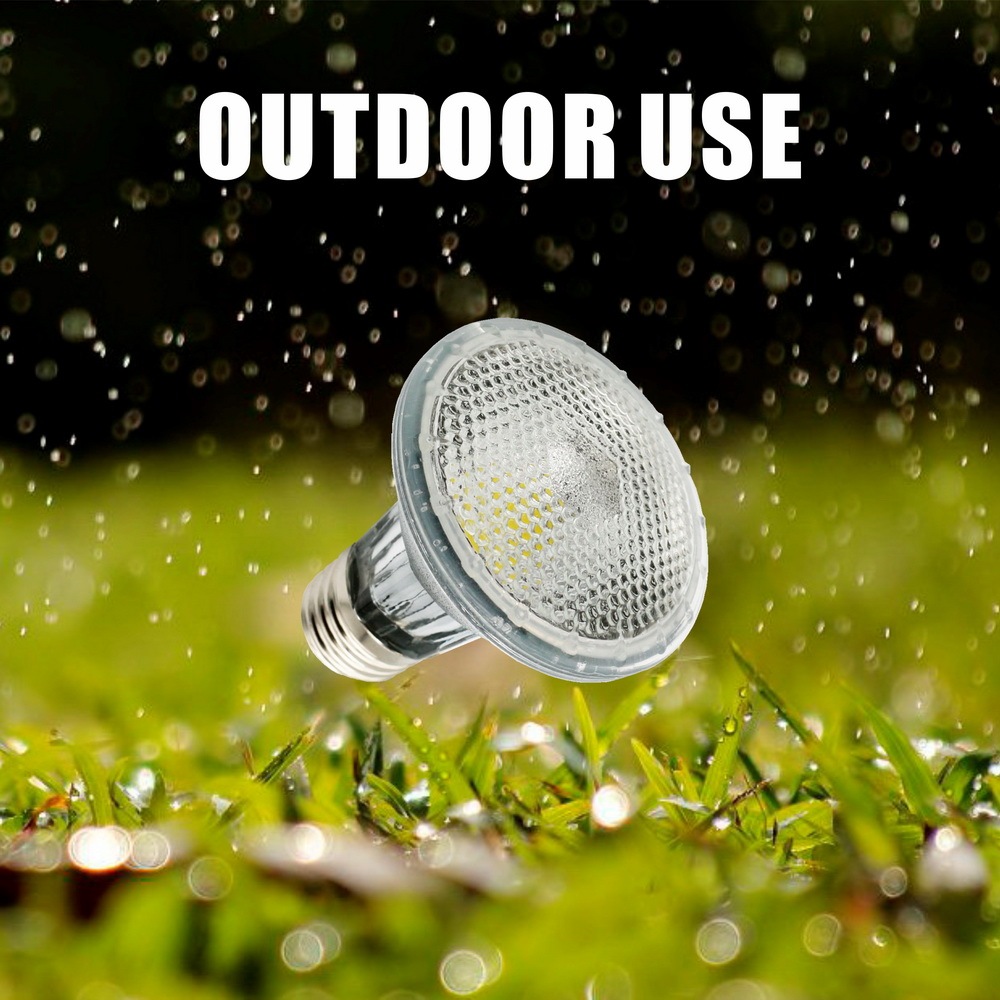

- interior, domestic, outdoor, semi-outdoor
- projection lighting, spot lighting, accent lighting, residential lighting, commercial lighting,
office lighting, display lighting, landscape lighting, garden lighting …
- balcony, veranda, porch, kitchen, bathroom, washroom, corridor, vestibule, doorway, stairwell, reception, showroom,
shop, department store, boutique, supermarket, show window, museum, gallery, hotel, dance hall, spa, sauna, bath house, natatorium,
rest room, garden, yard, park, lawn, shrub, wall, footpath, outlets, restaurant, café, open-air bar …
- track light, recessed downlight, embedded light, projection light, spot light, pot-light, mirror front lamp, showcase light, bath heater,
spike light, lawn light, uplight …
