Basic Parameters
- Housing Material: quartz glass
- Front Cover: clear convex glass cover
- Heat Sink: Aluminum bowl

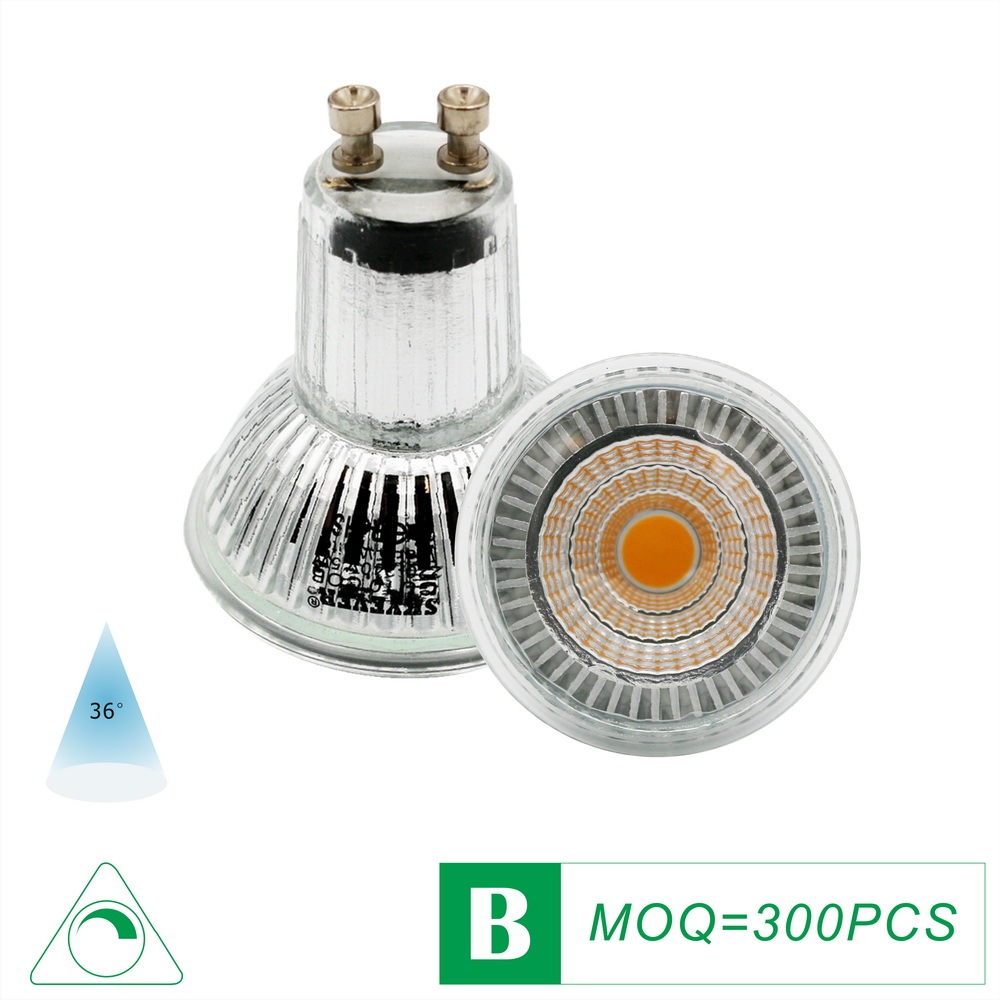

- Beam Angle: 36°
- Lamp Base/Cap: GU10
- Color Temperature (CCT): 3000K/4200K/6000K±200K
- Color Render Index (CRI/Ra): >80 / >90
- Dimming: dimmable
- Input Voltage: AC110V-130V/AC220V-240V
- Driver Type: linear IC driver
- (independent, no flicker)
- Power Factor (PF): 0.9
- Lifetime Span: 20,000 Hrs
- Warranty: 2 years
Data of the Models
- Model Type: GU10-COB-5W-GA02/L-DIM
- Rated Power: 5 Watts
- LED Chips: 1*COB (5-7W)
- Power Consumption: 5.0W±5%
- Luminous Flux: 500lm±10%
- Lumen Efficiency: 90-100lm/W
- EQ to halogen: 50W
- Net Weight: 52g
Conformity/Certification
Features & Advantages

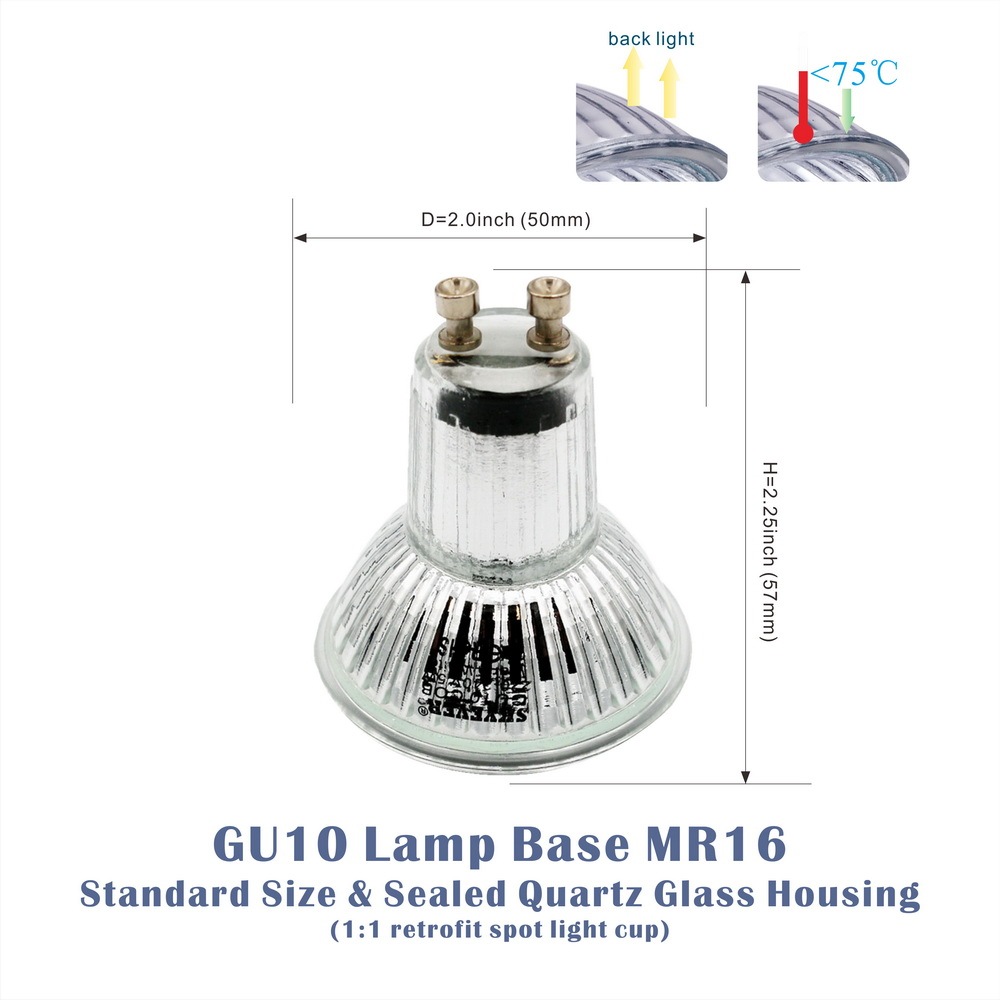

- Same quartz glass shell as halogen GU10, low temperature & UV free.
- 36° narrow beam angle and up to 500lm flux, replace 50W halogen lamp cup well.
- Standard Aluminum film reflector, uniform light spot without dark area or interference pattern.
- Ultra-bright COB LED chip LM80 passed, >90 CRI model available for high-end commercial use.
- Sealed clear glass cover, ideal spot lamp bulb for either indoor or outdoor spaces with moisture.
- Aluminum-bowl heat-sink inside, stable performance in semi-enclosed light fixtures.
- Flicker-free independent linear IC driver, dimmable circuit inside.
Application/Typical Light Fixtures
- Interior, household, outdoor, semi-outdoor
- spot lighting, accent lighting, decoration lighting, residential lighting, furniture lighting, commercial lighting,
office lighting, display lighting, landscape lighting, garden lighting …
- bedroom, living room, dining room, kitchen, bathroom, washroom, passage, aisle, hallway, vestibule, doorway, staircase,
wardrobe, cabinet, balcony, veranda, porch, reception, showroom, store, boutique, shopping mall, shop window, museum, gallery,
hotel, lobby, restaurant, café, pub, spa, bath house, hospital, theater, church, garden, yard, lawn, shrub, grove, wall, square, outlets, open-air bar …
- ceiling downlight, embedded downlight, track light, spotlight, pot light, Hi-spot, mirror front lamp, fresco lamp, vanity light,
recessed lamp, showcase light, spike light, lawn light …
