Detachable Spot LED Downlight Fixture 2 Inch MR16/GU10 COB 5 Watts (Iron Frame)

Advantage of Separable(Detachable) Light Fixtures

1. Change the light features freely by replacing the light bulbs only.
2. Easy maintenance operation once need to remove the old light bulbs.
3. Lower overall cost considering the longer lifetime of the light fixture than light source.


Basic Parameters

• Fitting Material: Iron
• Fitting Surface Color: white(WH); black(BK); satin nickel
• Diameter: Φ90mm (Round) 90X90mm (square)
• Cut-off: Φ65MM (Round) 65X65mm (square)
• Bulb Replacement Position: front (with clip ring)
• Fitting Height: 24mm

• Light Emitting Surface Diameter: 2 INCH (2”)
• Light Source Type: glass MR16/GU10 spot light cup
• Lamp Base/Holder: GU5.3/GU10
• Color Temperature (CCT): 3000K/4200K/6000K±200K
• Color Render Index (CRI/Ra): >80 / >90
• Lifetime Span: 20,000 Hrs (light Source)
• Conformity/Certification: CE, RoHS, ERP
• Luminous Flux: 500lm±10%
• Rotative Angle: 45-50°
• Beam Angle: 36°

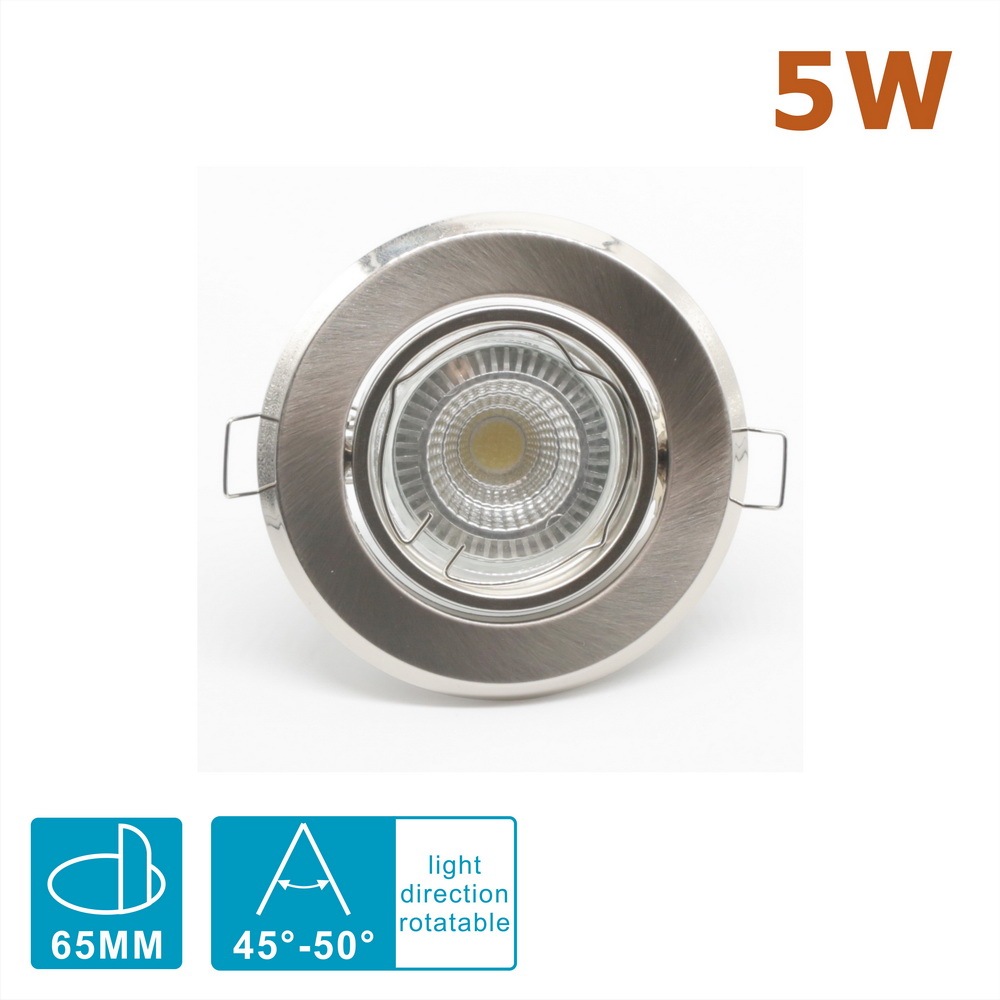

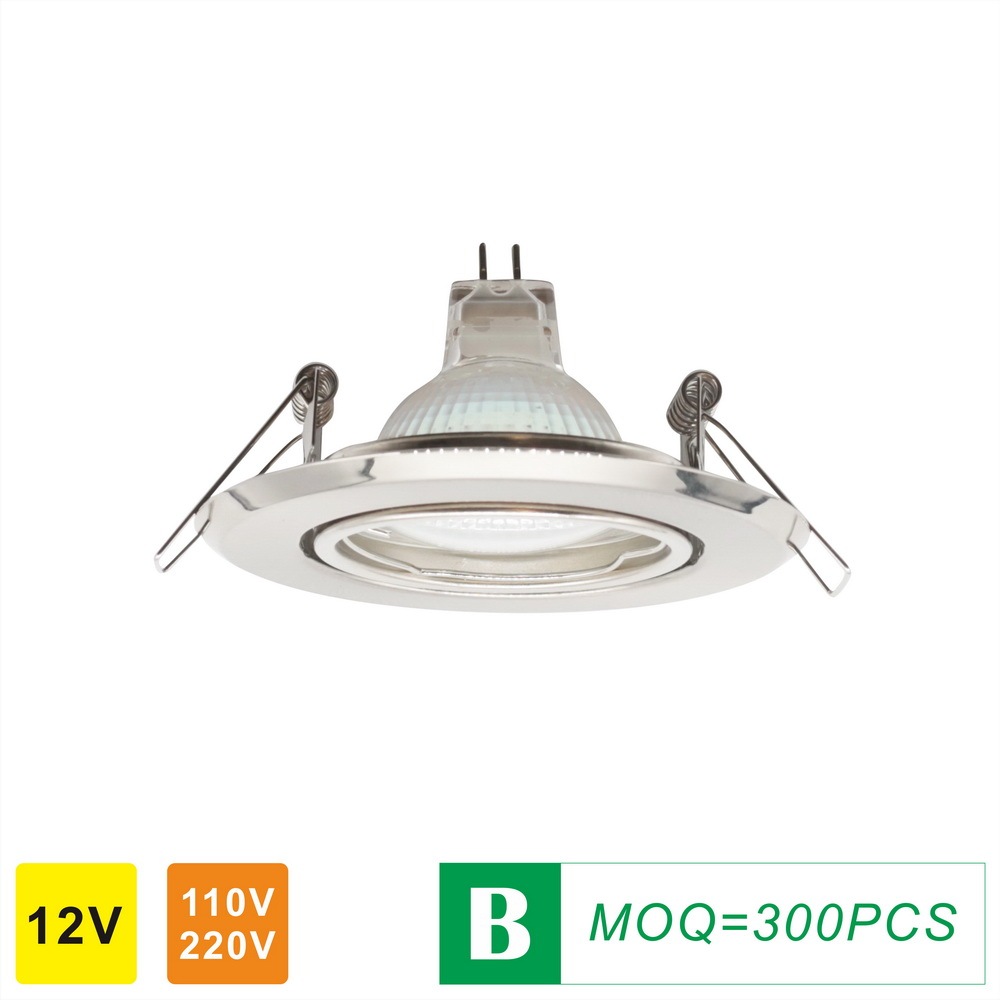

ROUND SHAPE

• Model Type: DLFS-002/TR-MR16/01/A-5W
• LED chip: 1*5-7W COB (with DOC IC driver inside)
• Input Voltage: AC110V-130V/AC220V-240V
• Dimming: Non-dimmable

• Model Type: DLFS-002/TR-MR16/01/LV-5W
• LED chip: 1*5-7W COB (with DOC IC driver inside)
• Input Voltage: AC/DC 12V
• Dimming: Non-dimmable

• Model Type: DLFS-002/TR-GU10/01/L-DIM-5W
• LED chip: 1*5-7W COB
• Input Voltage: AC110V-130V/AC220V-240V
• Dimming: dimmable

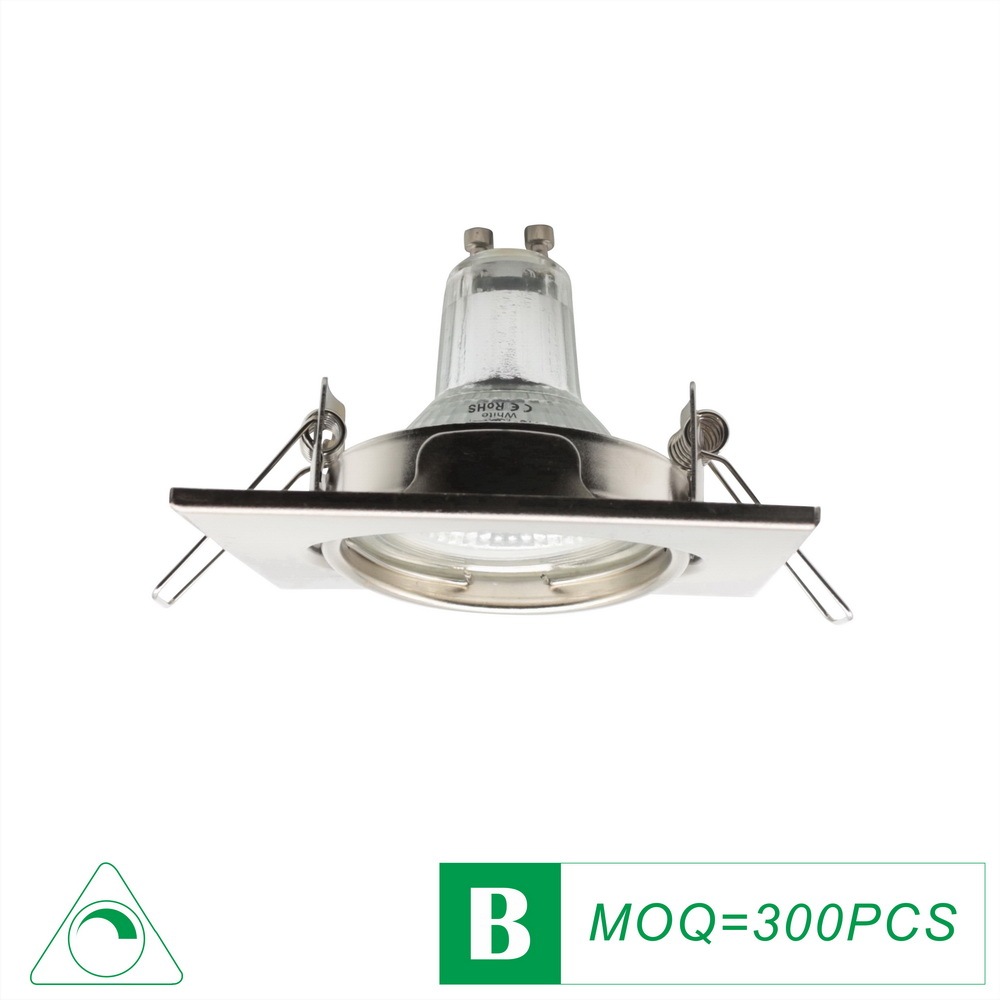

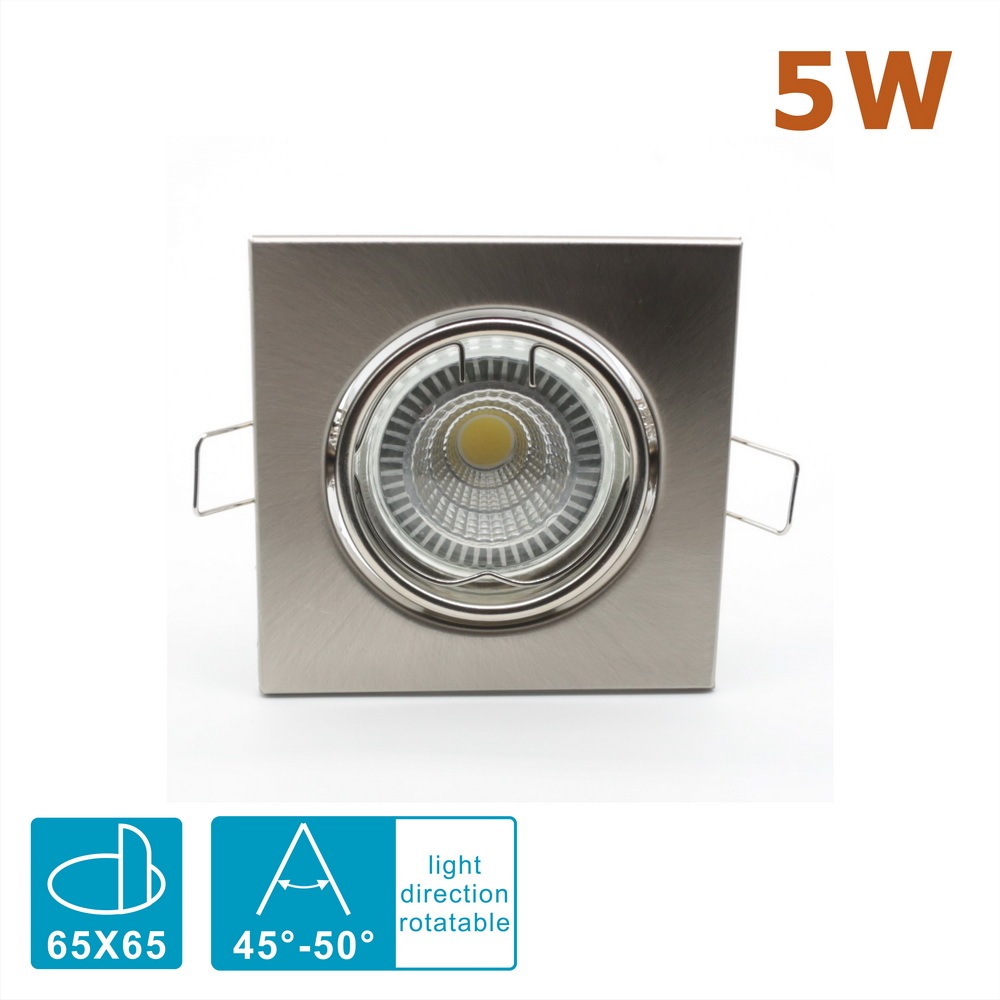

SQUARE SHAPE

• Model Type: DLFS-002/TS-MR16/01/A-5W
• LED chip: 1*5-7W COB (with DOC IC driver inside)
• Input Voltage: AC110V-130V/AC220V-240V
• Dimming: Non-dimmable

• Model Type: DLFS-002/TS-MR16/01/LV-5W
• LED chip: 1*5-7W COB (with DOC IC driver inside)
• Input Voltage: AC/DC 12V
• Dimming: Non-dimmable

• Model Type: DLFS-002/TS-GU10/01/L-DIM-5W
• LED chip: 1*5-7W COB
• Input Voltage: AC110V-130V/AC220V-240V
• Dimming: dimmable
