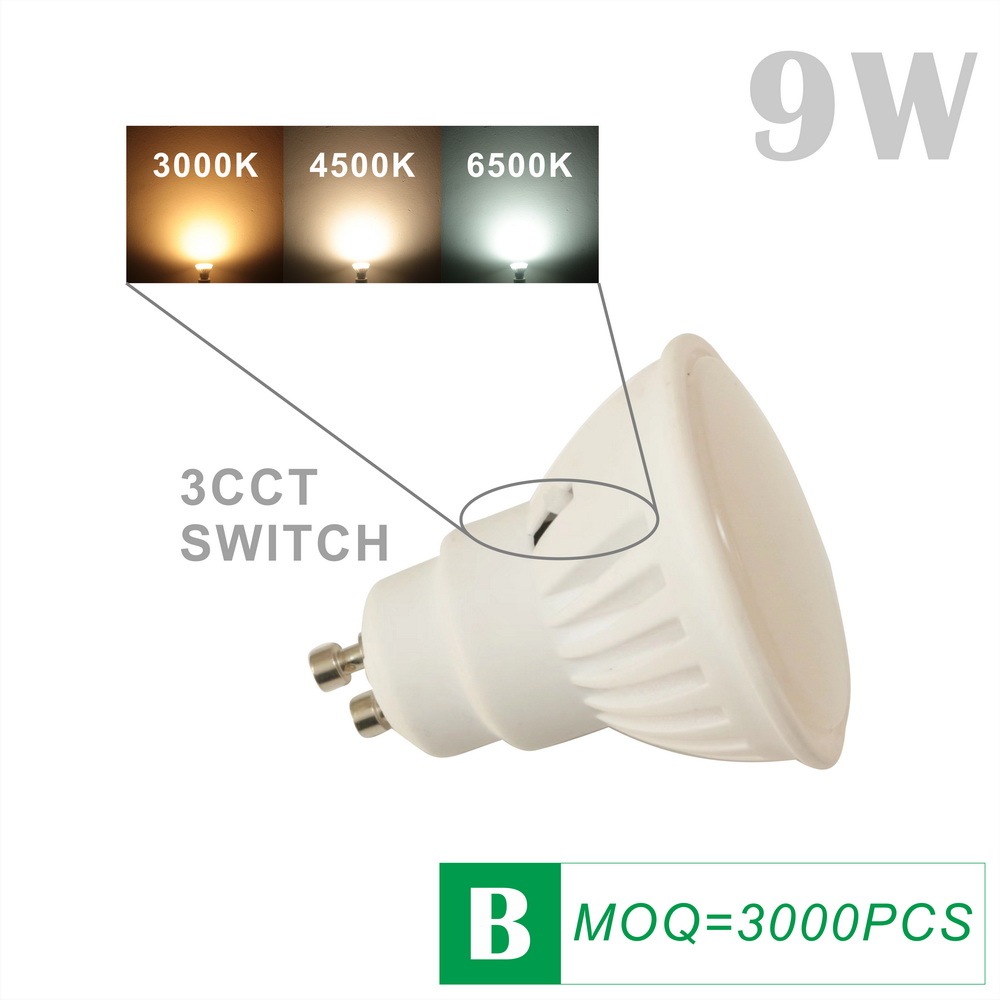

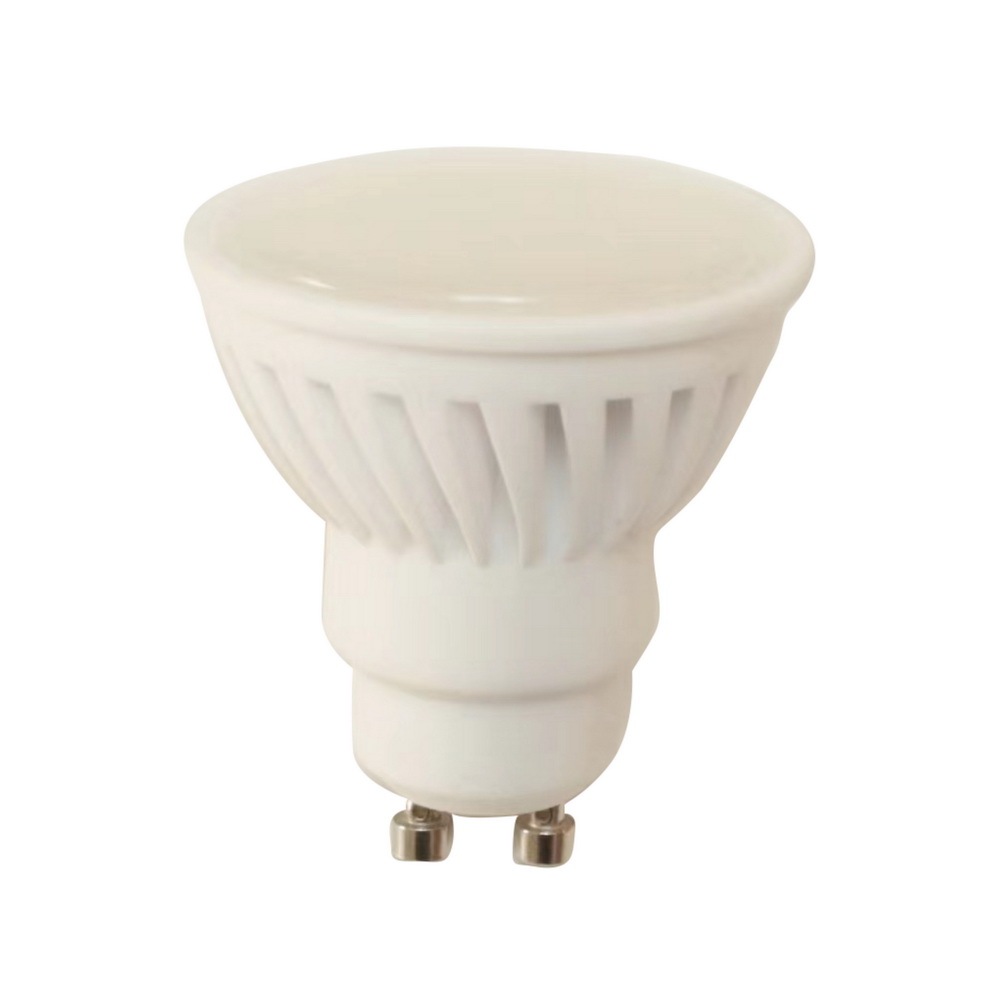

Ceramic LED GU10 Spot Lamp Cup 9 Watts 120V/230V with On-Lamp 3CCT Switch

Basic Parameters

• Housing Material:
• thermal conductive ceramic
• Front Cover: frost PC cover
• Heat Sink: Aluminum MPCB + ceramic housing
• Beam Angle: 120°
• Lamp Base/Cap: GU10
• Color Render Index (CRI/Ra): >80 / >90
• Dimming: non-dimmable
• Input Voltage: AC90V-130V/AC170V-265V
• Driver Type:
• switching IC driver (independent, no flicker)
• Power Factor (PF): 0.5
• Lifetime Span: 15,000 Hrs
• Warranty: 2 years

Data of the Models

• Model Type: GU10-SMD-9W-CA01/A
• Rated Power: 9 Watts
• Diameter (mm/inch): 50mm/1.97inch
• Height (mm/inch): 57mm/2.24inch
• LED Chips: 20*SMD2835
• Power Consumption: 8.5W±5%
• Luminous Flux: 750lm±10%
• Color Temperature (CCT):
• 3000K/4200K/6500K±300K
• Lumen Efficiency: 80-90lm/W
• Halogen Equivalent: 75W


• Model Type: GU10-SMD-9W-CA01/A-3CCT/S
• Rated Power: 9 Watts
• Diameter (mm/inch): 50mm/1.97inch
• Height (mm/inch): 57mm/2.24inch
• LED Chips: 20*SMD2835
• Power Consumption: 8.5W±5%
• Luminous Flux: 750lm±10%
• Color Temperature (CCT):
• 3000K-4200K-6500K±300K adjustable
• (by on-lamp switch)
• Lumen Efficiency: 80-90lm/W
• Halogen Equivalent: 75W

Conformity/Certification

Applications & Typical Light Fixtures

• indoor, domestic, household, interior
• spot lighting, local lighting, accent lighting, decoration lighting, residential lighting …
• commercial lighting, office lighting, display lighting …
• bedroom, living room, dining room, study, kitchen, corridor, passage, aisle, hallway, vestibule, entry …
• office, reception, meeting room, showroom, department store, boutique, shopping mall, supermarket, plaza, outlets,
• show window, museum, exhibition hall, hotel, lobby, restaurant, café, canteen, reading room, rest room, kindergarten, hospital, nursery, library …
• ceiling downlight, embedded downlight, recessed downlight, track light, spotlight, mirror front lamp, fresco lamp, pot-light, Hi-pot …
