Home > LED G4 Module > Aluminum MPCB LED G4 Module SMD5050 6/9/12/24PCS DC 12 Volts Dimmable

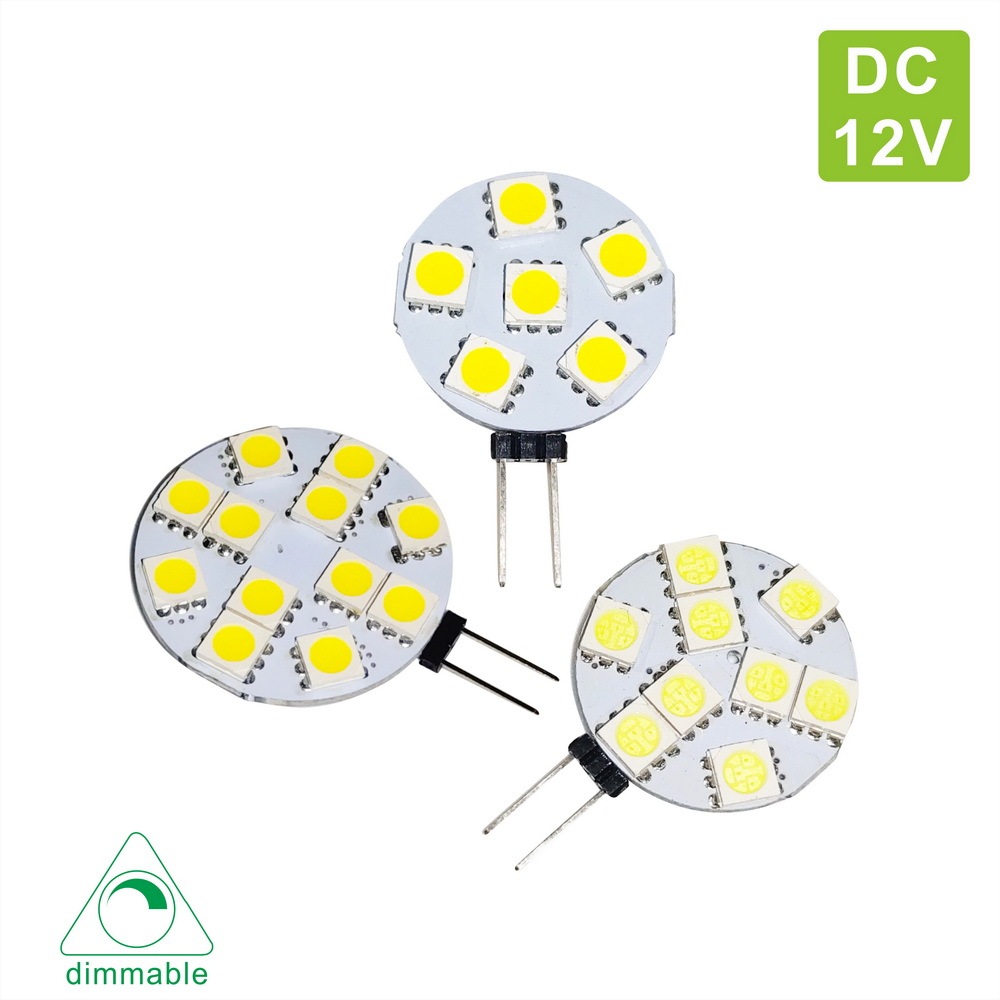

Aluminum MPCB LED G4 Module SMD5050 6/9/12/24PCS DC 12 Volts Dimmable (1/10 Pack)

SKU:
0.0 (0)
0 Sold
$0.43 $0.48

Aluminum MPCB LED modules featured with G4 lamp base, ultra-bright SMD LED chips on board, 180° beam angle and DC 12 volts input voltage. Small size and slim shape for narrow slot or small light fixtures, good for decoration lighting, vehicle lighting and equipment lighting, etc.

Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Pack QTY:
    1PCS
    10Pack
  • LED QTY:
    6pcs
    9pcs
    12pcs
    24pcs
  • Light Color:
    3000K warm white
    3000K warm white
    6000K cool white
    6000K cool white
Quantity:
  • Aluminum MPCB LED G4 Module SMD5050 DC 12V Dimmable
  • Aluminum MPCB LED G4 Module SMD5050 DC 12V Dimmable
  • Aluminum MPCB LED G4 Module SMD5050 DC 12V Dimmable
  • Aluminum MPCB LED G4 Module SMD5050 DC 12V Dimmable
  • Aluminum MPCB LED G4 Module SMD5050 DC 12V Dimmable
  • Aluminum MPCB LED G4 Module SMD5050 DC 12V Dimmable
1/1
  • Aluminum MPCB LED G4 Module SMD5050 DC 12V Dimmable
  • Aluminum MPCB LED G4 Module SMD5050 DC 12V Dimmable
  • Aluminum MPCB LED G4 Module SMD5050 DC 12V Dimmable
  • Description

Buy On Ebay






Basic Parameters

  • Body Material: Aluminum MPCB
  • Beam/Viewing Angle: 180°
  • Lamp Base/Cap: G4
  • Dimming: dimmable
  • Color Temperature (CCT): 3000K/4200K/6500K±300K
  • Color Render Index (CRI/Ra): >80
  • Input Voltage: DC 12 Volts
  • Lifetime Span: 15,000 Hrs
  • Warranty: 2 years



Data of the Models

  • Model: 5050-G4-6LED-M1/LV/DC-DIM
  • Dimensions: 23mm/0.91in
  • Power Consumption: 0.6W±5%
  • Luminous Flux: 65lm±10%
  • Lumen Efficiency: 100-110lm/W

  • Model: 5050-G4-9LED-M1/LV/DC-DIM
  • Dimensions: 25mm/0.98in
  • Power Consumption: 0.9W±5%
  • Luminous Flux: 100lm±10%
  • Lumen Efficiency: 100-10lm/W

  • Model: 5050-G4-12LED-M1/LV/DC-DIM
  • Dimensions: 30mm/1.18in
  • Power Consumption: 1.2W±5%
  • Luminous Flux: 130lm±10%
  • Lumen Efficiency: 100-110lm/W



Conformity/Certification



Features & Advantages

  • Ultra-bright SMD5050 LED chips, up to 100-110lm/W real lumen efficacy.
  • Super thin size, easy installation in small space such as narrow slot or inner parts of equipments.
  • G4 lamp base and DC 12V input, drived by constant voltage power supply, transformer or battery.

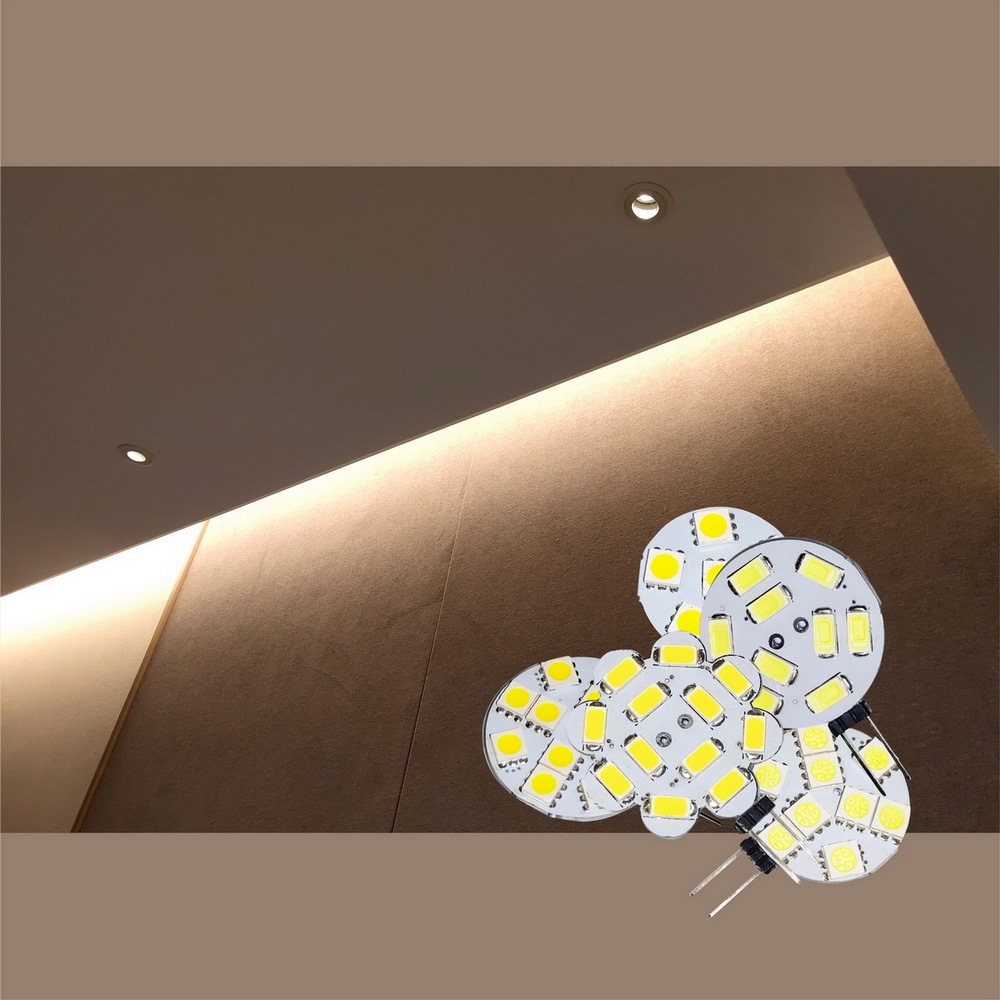

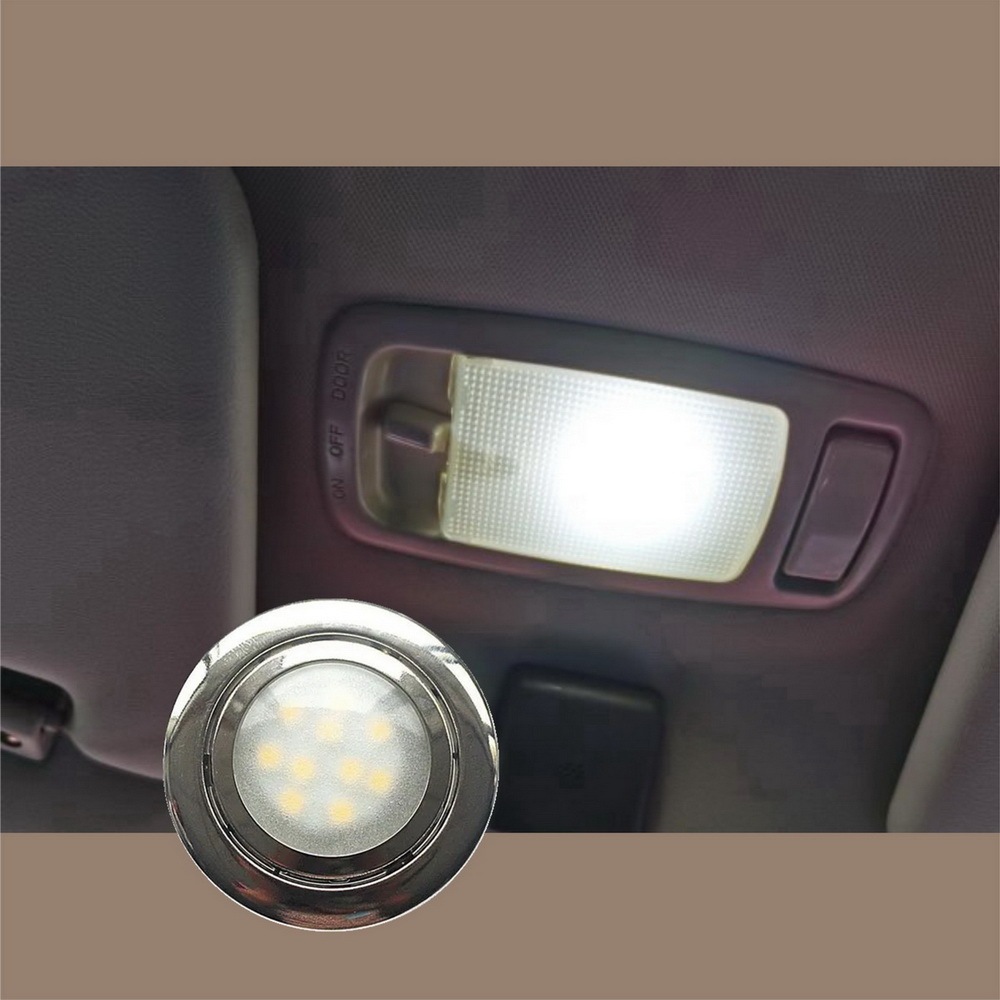

Applications & Typical Light Fixtures

  • domestic, interior, decoration lighting, atmosphere lighting, sign lighting, signal lighting,residential lighting, furniture lighting,
    commercial lighting, office lighting, display lighting, equipment lighting, vehicle lighting, automobile lighting, ship lighting, aircraft lighting …
  • living room, dining room, washroom, cabinet, vanitory, reception, conference room,
    department store, shopping mall, supermarket, hotel, lobby, hall, equipment, machine tool, lathe,
    truck, lorry, car, bus, metro, train, boat, pleasure craft, yacht, vessel, passenger liner, tourist ship, aircraft …
  • ceiling light, berry light, troffer, light trough, wall light, candelabra, mirror lamp,
    cabinet light, vanity light, reading light, indicator light, sign light …
